Orchestrating Long-Running APIs | A Step-by-Step Guide to Asynchronous Execution

Handling long-running APIs is a common challenge in modern applications. Whether you’re processing large datasets, generating reports, or interacting with third-party services, some API calls exceed the 30–60 second timeout window allowed by most systems. When an API takes too long to respond, workflows can break—resulting in failed tasks, degraded user experiences, or unnecessary retries.

To address this, we’ll implement a solution using asynchronous orchestration. Instead of waiting for the long-running task to complete, the workflow triggers it asynchronously, stores its progress in an external database, and uses polling to track its status until completion.

In this blog, we’ll walk through a scalable solution using Orkes Conductor—a Unified Application Platform—along with AWS Lambda, Amazon API Gateway, and Amazon DynamoDB.

Why are long-running APIs difficult?

APIs that take several minutes to complete are not uncommon, especially in systems that rely on compute-heavy workloads or external services. However, traditional synchronous API calls aren’t equipped to handle extended processing delays.

Let’s consider a simple HTTP task in Orkes Conductor or any workflow engine. These tasks typically expect a response within a certain timeout window (e.g., 60 seconds). If the external API takes longer than that, the task fails. This limitation affects:

• User-facing features–UI elements may hang or fail without feedback.
• System performance–Workflow fails, and retries kick in, increasing the load on compute resources and downstream services.
• Observability–There’s no clear visibility into the task’s state if the response never arrives.

Stretching timeout windows or blocking workflows isn’t a scalable solution. A better approach is a more resilient workflow architecture pattern—one that embraces asynchronous execution and decouples task initiation from task completion.

Solution: Use asynchronous HTTP invocation with polling

To reliably handle long-running APIs, we’ll implement an asynchronous invocation with a polling pattern using Orkes Conductor and AWS services. This avoids timeouts while maintaining full control and visibility over the process.

At a high level, the pattern involves:

• Triggering the long-running task asynchronously
• Tracking its execution state in an external store
• Polling the task status until it is completed

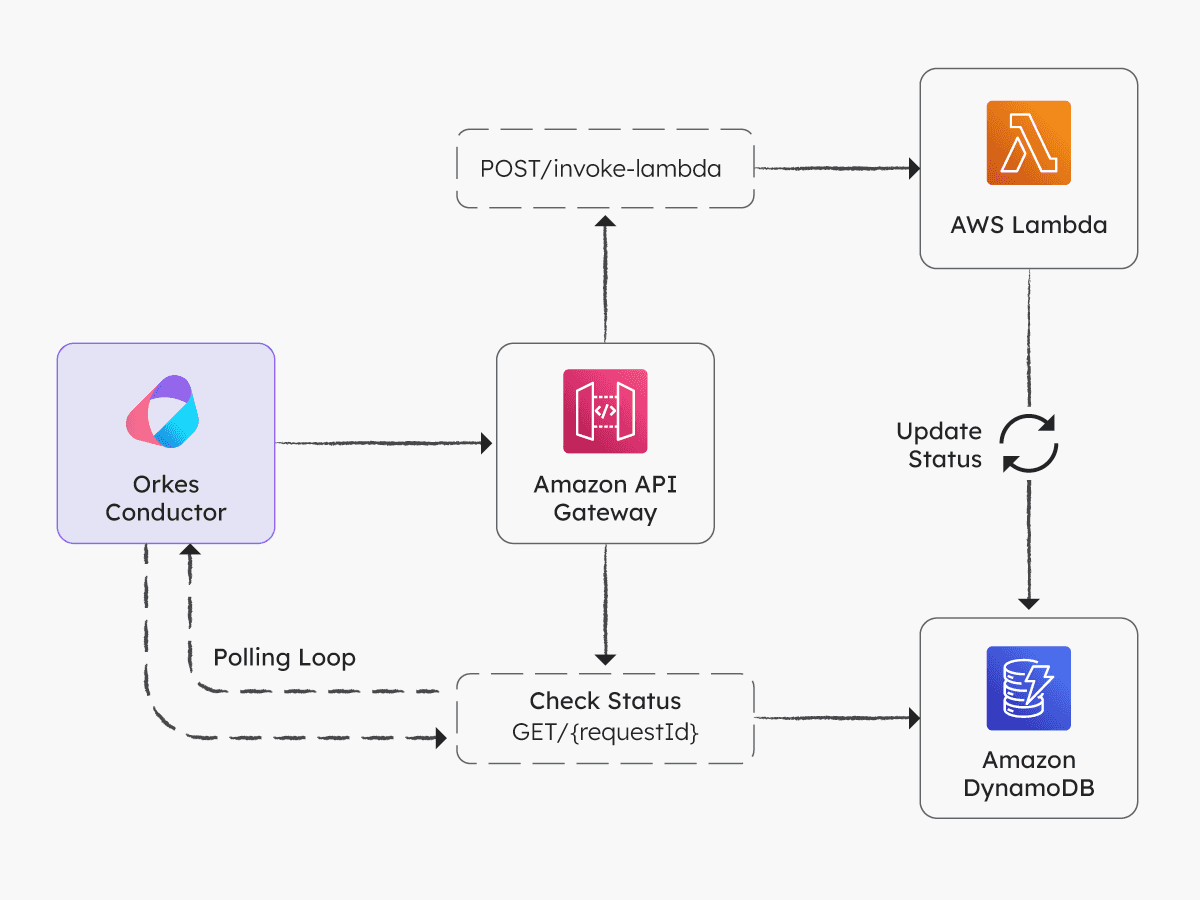

We’ll implement this orchestration pattern using:

• AWS Lambda–A serverless computing service that simulates the long-running task.
• Amazon DynamoDB–A NoSQL database to store and track the status of each request.
• Amazon API Gateway–A REST API layer to expose Lambda endpoints for invocation and polling.
• Orkes Conductor–The orchestration platform that orchestrates the asynchronous flow.

How Asynchronous Orchestration Works

The core idea behind this pattern is:

1. Trigger the long-running task asynchronously

The workflow initiates the long-running process using an HTTP task configured to perform a non-blocking request (e.g., invoking a Lambda function asynchronously via API Gateway). The task immediately returns a requestId, which is used as a unique reference for tracking progress.

2. Track task progress externally

The Lambda function logs the execution state (e.g., PROCESSING or COMPLETED) in a NoSQL database like Amazon DynamoDB, which serves as a persistent data store for tracking task progress externally.

3. Poll the task status until completion

Conductor workflow periodically queries the status of the request using an HTTP Poll task. The polling continues until the task is marked as completed in the external system.

This model allows the workflow to remain active and aware of the task’s progress without exceeding timeout thresholds or blocking system resources.

Now that we understand the pattern conceptually, let’s walk through how to implement this using Orkes Conductor and AWS services.

Building a long-running API workflow

In this section, we’ll implement the long-running API orchestration pattern using Orkes Conductor. To follow along, sign in to the free Developer Playground.

Part 1: Set up AWS resources

Step 1: Create an Amazon DynamoDB table for status tracking

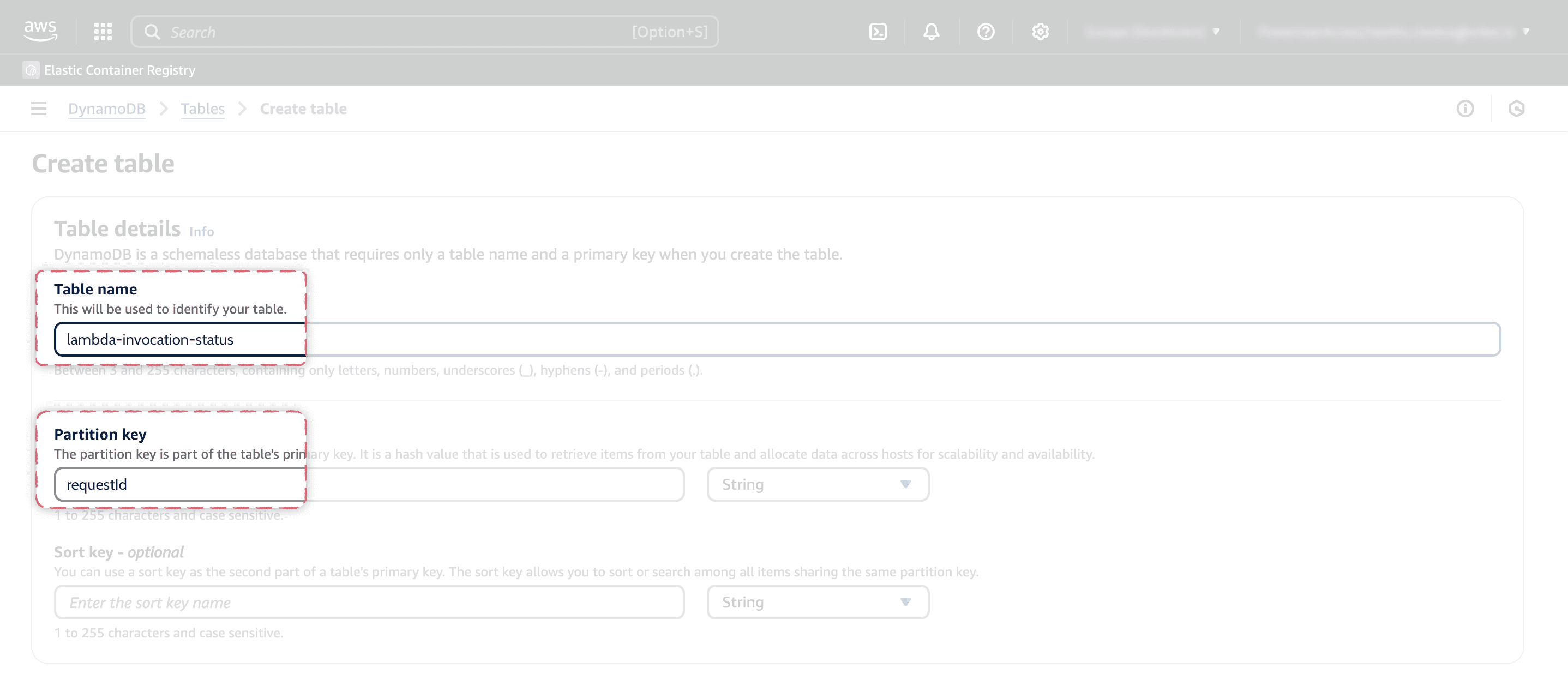

Start by creating a table in DynamoDB named lambda-invocation-status with requestId as the partition key.

This table stores the execution status of each request.

Step 2: Set up a long-running task in AWS Lambda

Next, we’ll create a Lambda function that:

• Accepts a requestId and an action
• Simulates a long-running task
• Updates the task’s status in DynamoDB

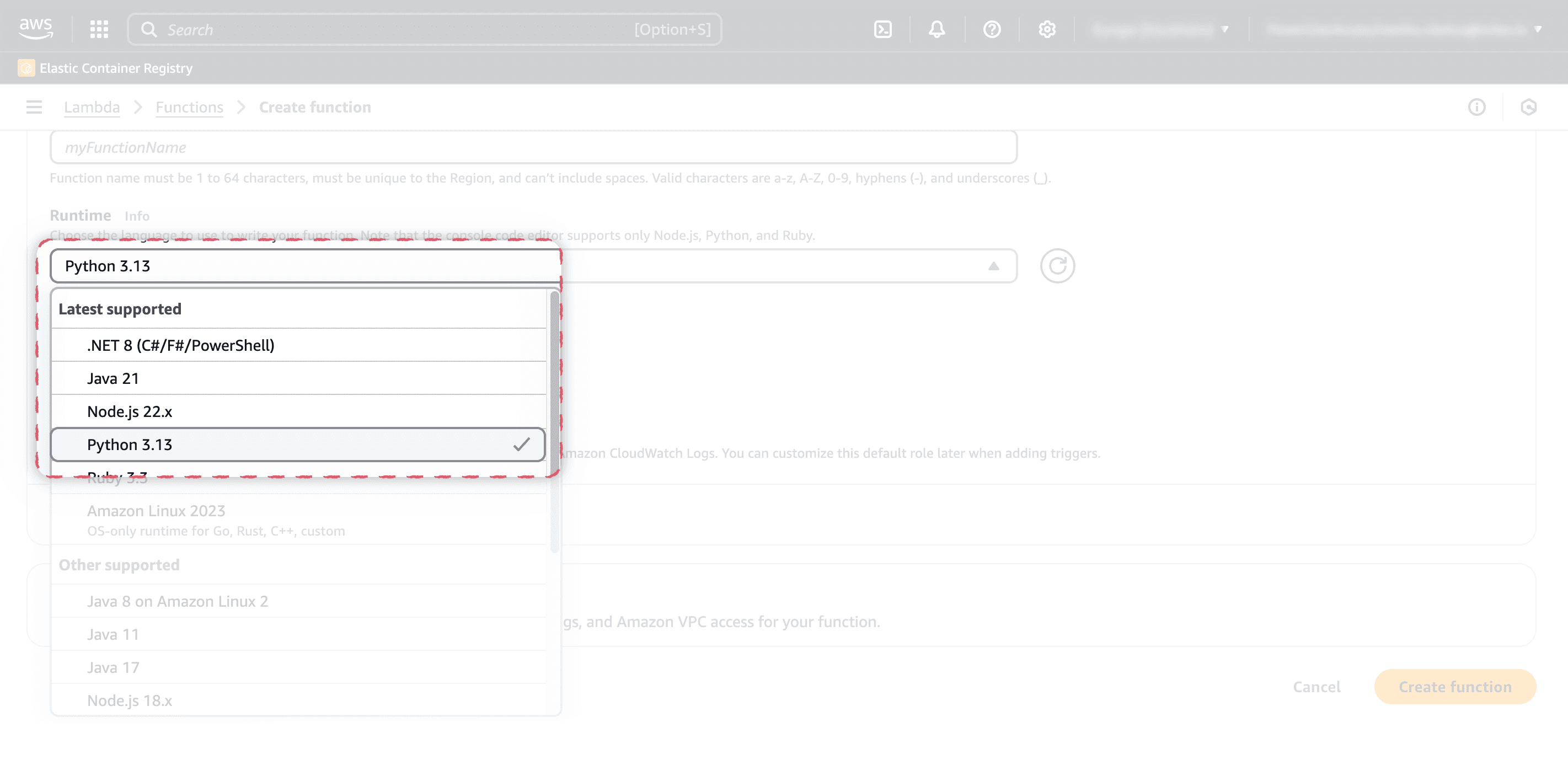

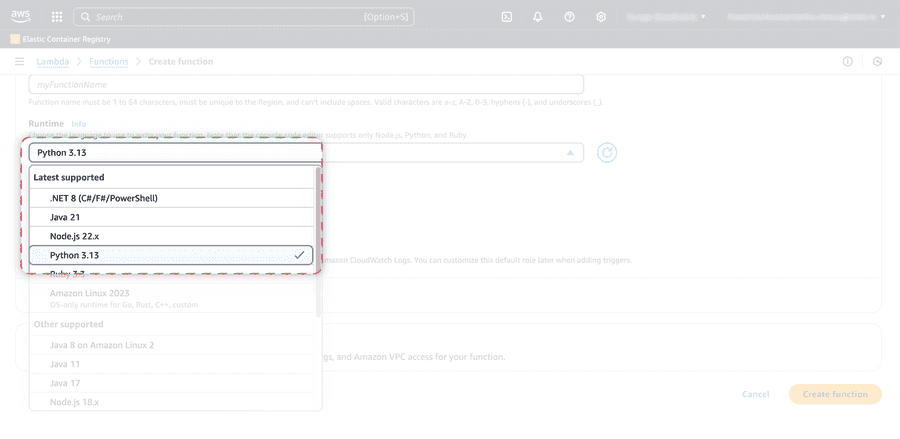

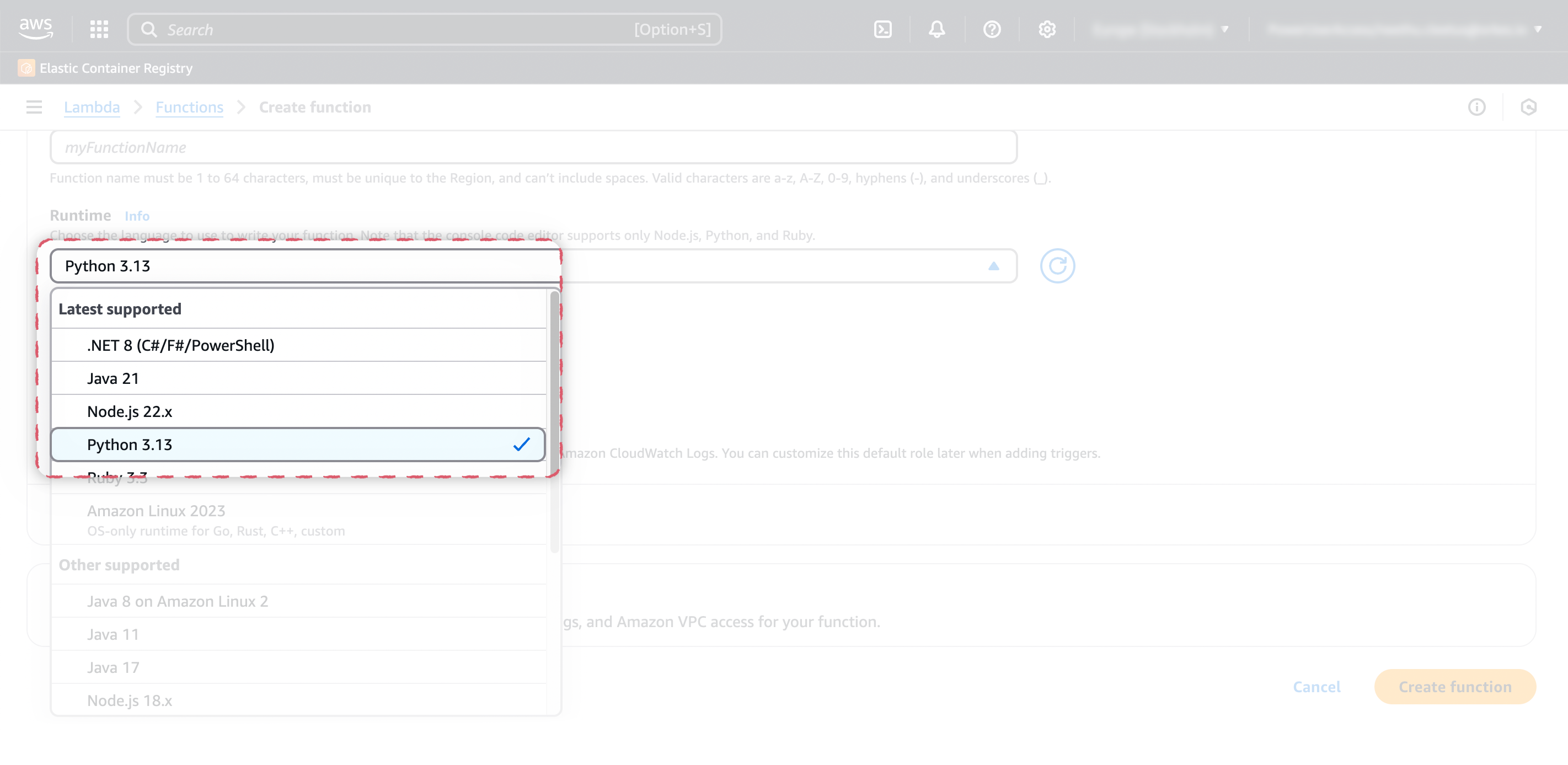

Create an AWS Lambda function using the Python code:

import json
import time
import boto3

dynamodb = boto3.resource('dynamodb')
table = dynamodb.Table('lambda-invocation-status')

def lambda_handler(event, context):
    request_id = event['requestId']
    action = event.get("action")

    if action == "invoke":
        table.put_item(Item={'requestId': request_id, 'status': 'PROCESSING'})

        # Simulate long processing time
        time.sleep(2)
        process_long_running_task(request_id)

        return {
            "statusCode": 202,
            "body": json.dumps({"requestId": request_id, "status": "PROCESSING"})
        }

    elif action == "status":
        response = table.get_item(Key={'requestId': request_id})
        item = response.get('Item')
        if item:
            return {"statusCode": 200, "body": json.dumps(item)}
        else:
            return {"statusCode": 404, "body": json.dumps({"status": "NOT_FOUND"})}

def process_long_running_task(request_id):
    time.sleep(25)  # Simulate processing time
    table.update_item(
        Key={'requestId': request_id},
        UpdateExpression='SET #s = :val',
        ExpressionAttributeNames={'#s': 'status'},
        ExpressionAttributeValues={':val': 'COMPLETED'}
    )

Adjust the Lambda timeout to 1 minute and attach an IAM role with complete access to DynamoDB.

Step 3: Set up API Gateway endpoints

Create a REST API in Amazon API Gateway and expose the Lambda function with two endpoints:

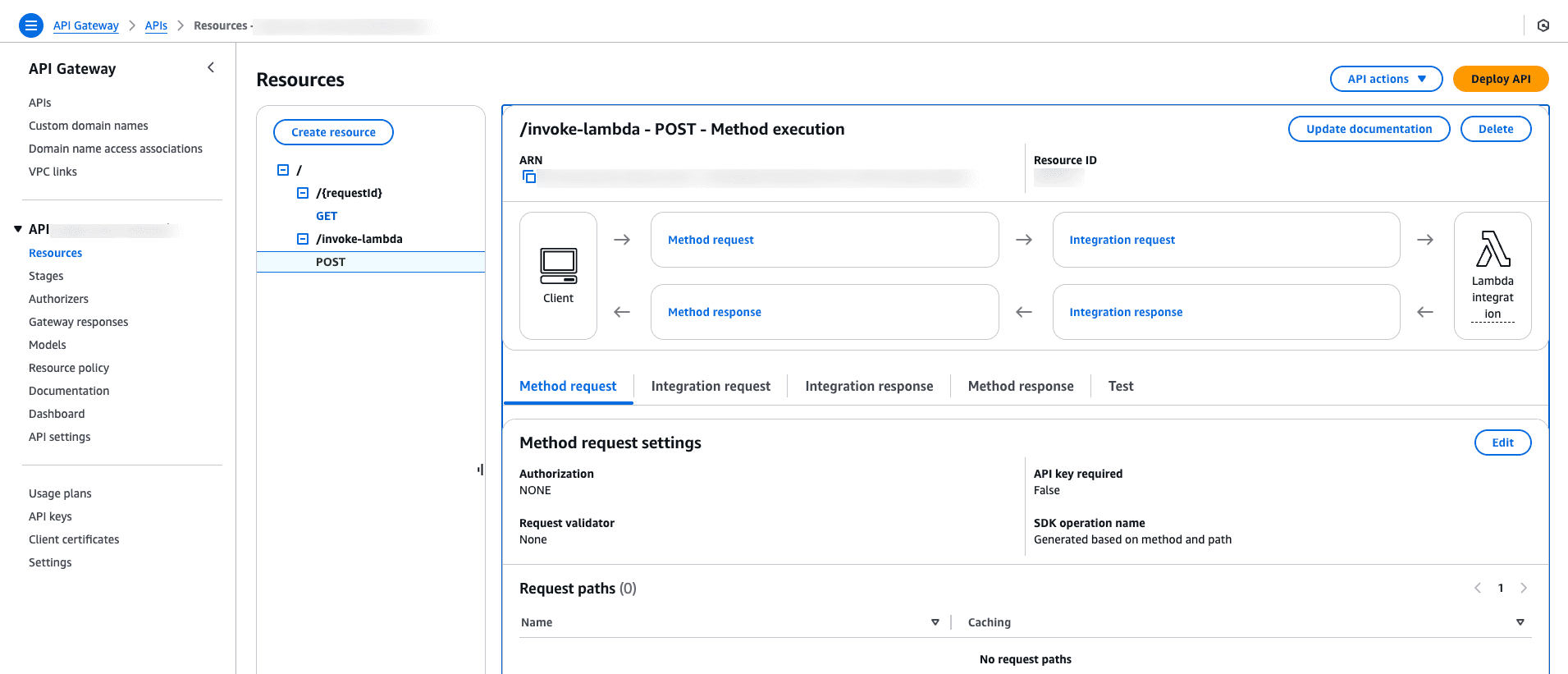

• POST /invoke-lambda–Triggers the task.

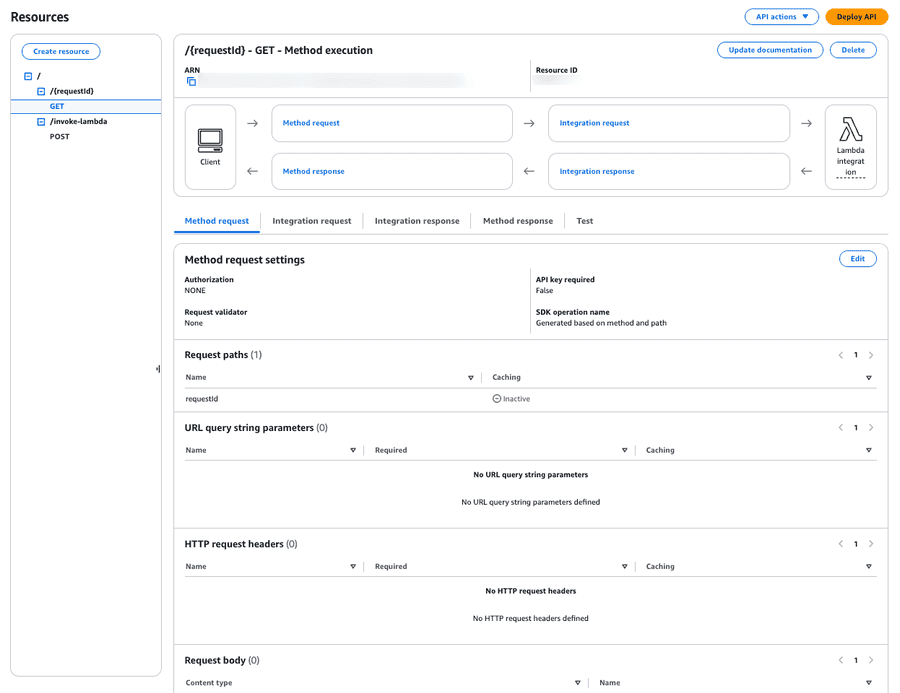

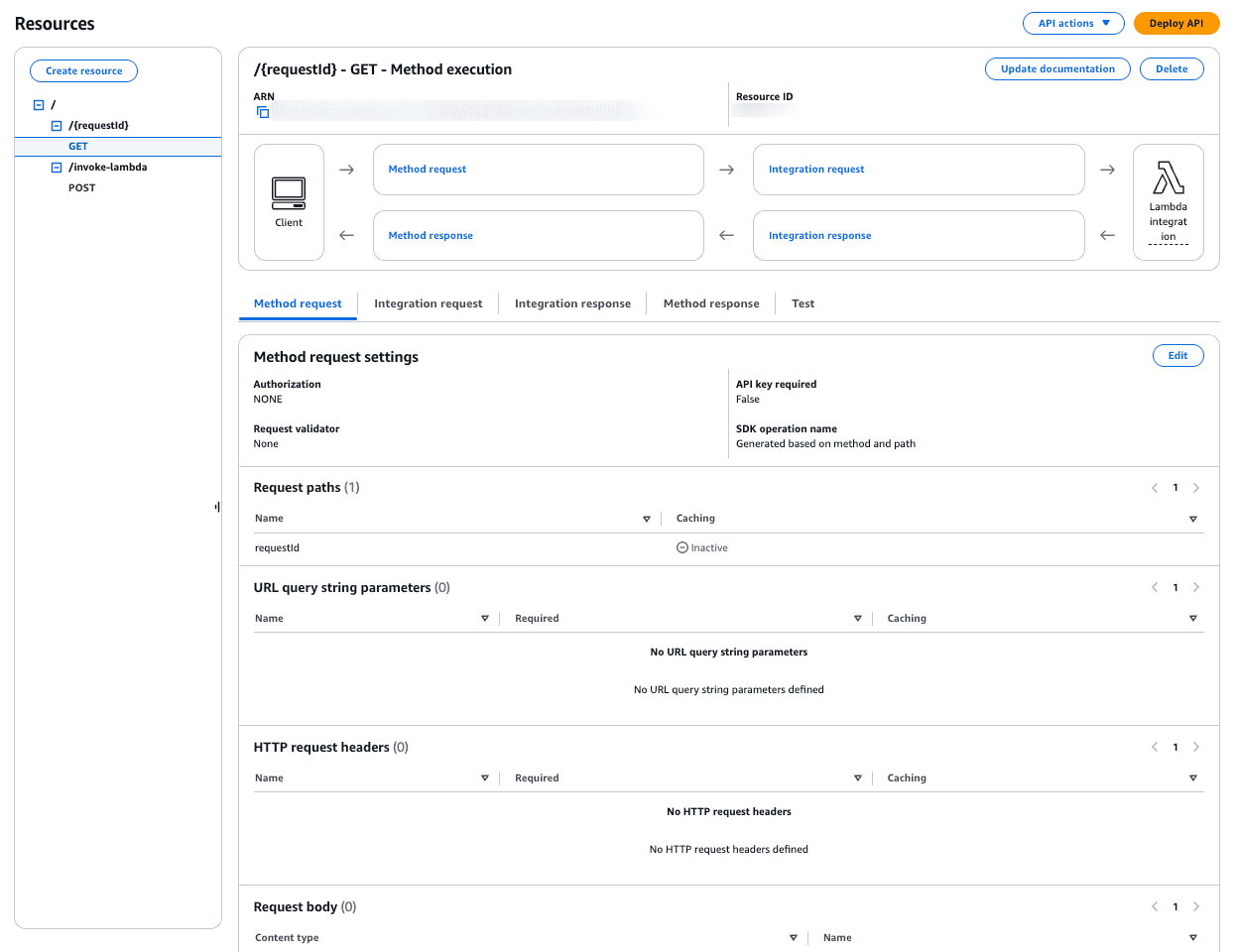

• GET /{requestId}–Returns the current task status.

Deploy the API and note the endpoint URL—they’ll be used in the workflow definition.

Part 2: Build the Orkes Conductor workflow

With your AWS resources ready, it’s time to orchestrate the flow in Orkes Conductor. Let’s build a workflow that:

1. Invokes the Lambda function using an HTTP task.
2. Polls the status endpoint until the task is completed using the HTTP Poll task.

Step 1: Invoke Lambda asynchronously

Use an HTTP task in Conductor to call the Lambda endpoint via API Gateway, passing a requestId in the body. The Lambda will start the task and return a 202 response.

Step 2: Poll for task completion

Use an HTTP Poll task to query the status endpoint at regular intervals. The polling continues until the external system returns a "COMPLETED" status.

This behavior is configured using the following termination condition in the HTTP Poll task:

(function(){
  return $.output.response.statusCode == 200 &&
         $.output.response.body.body.status == "COMPLETED";
})();

Creating Conductor Workflow

Create a workflow in Developer Playground by navigating to Definitions > Workflow. In the Code tab, paste the following code:

{
 "name": "LongRunningAPIWorkflow",
 "description": "Sample workflow",
 "version": 1,
 "tasks": [
   {
     "name": "InvokeLambdaTask",
     "taskReferenceName": "invokeLambda",
     "inputParameters": {
       "http_request": {
         "uri": "https://<your-api-gateway-id>.execute-api.<your-region>.amazonaws.com/test/invoke-lambda",
         "method": "POST",
         "headers": {
           "Content-Type": "application/json",
           "X-Amz-Invocation-Type": "Event"
         },
         "body": {
           "requestId": "${workflow.input.requestId}"
         },
         "accept": "application/json",
         "contentType": "application/json"
       }
     },
     "type": "HTTP"
   },
   {
     "name": "http_poll",
     "taskReferenceName": "http_poll_ref",
     "inputParameters": {
       "http_request": {
         "uri": "https://<your-api-gateway-id>.execute-api.<your-region>.amazonaws.com/test/${workflow.input.requestId}",
         "method": "GET",
         "accept": "application/json",
         "contentType": "application/json",
         "terminationCondition": "(function() { return $.output.response.statusCode == 200 && $.output.response.body.body.status == \\\"COMPLETED\\\"; })();",
         "pollingInterval": "10",
         "pollingStrategy": "FIXED",
         "encode": true
       }
     },
     "type": "HTTP_POLL"
   }
 ],
 "inputParameters": [
   "requestId"
 ],
 "schemaVersion": 2
}

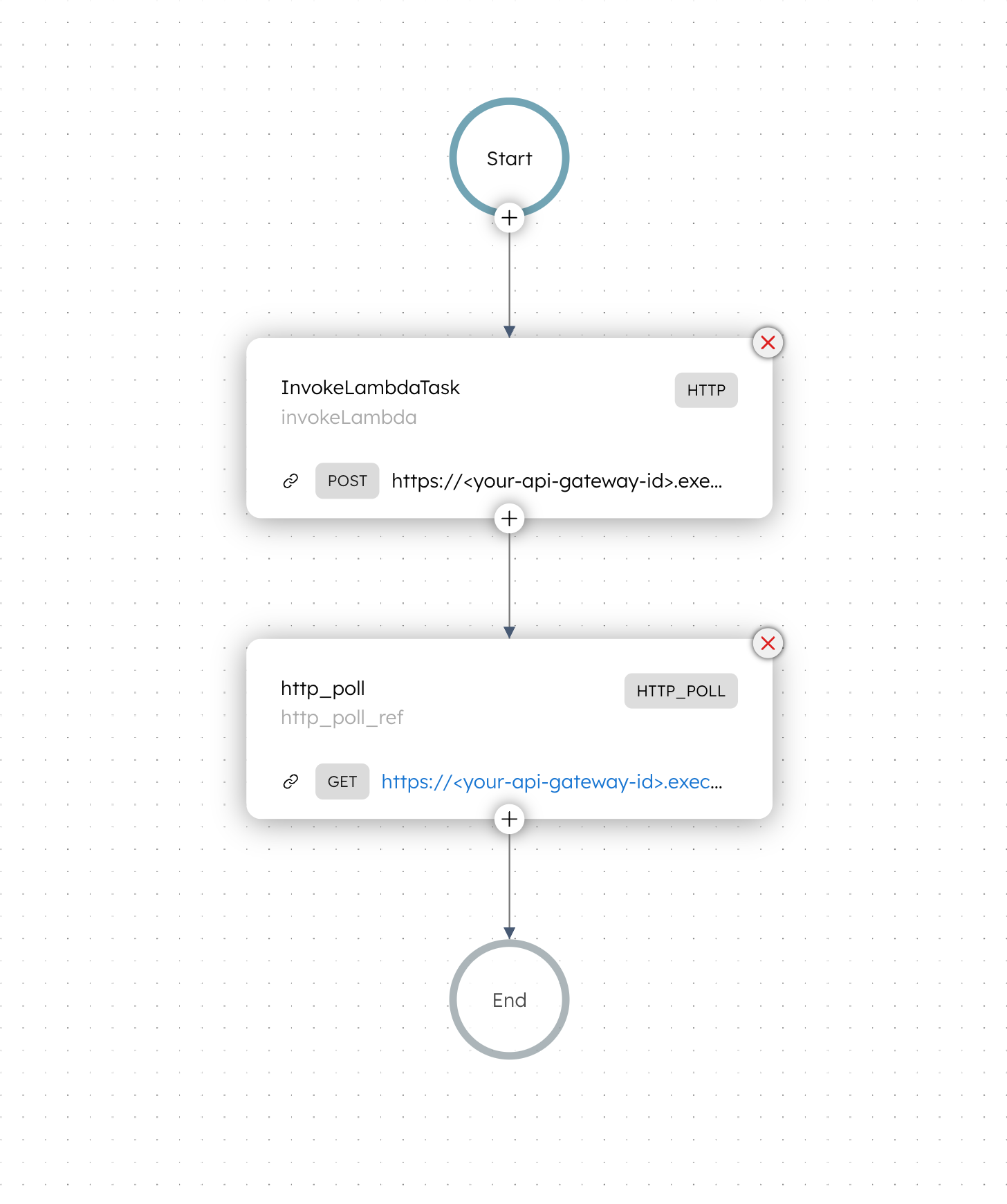

Your workflow will look like this:

Before running the workflow, update the URLs in your task definitions with your actual deployed API Gateway endpoints.

In InvokeLambdaTask (HTTP task), replace the URL with your deployed API endpoint for invoking the Lambda:

https://<your-api-gateway-id>.execute-api.<your-region>.amazonaws.com/<stage>/invoke-lambda

In the http_poll task, replace the polling URL with the endpoint for checking Lambda status:

https://<your-api-gateway-id>.execute-api.<your-region>.amazonaws.com/<stage>/${workflow.input.requestId}

Once configured, test the workflow with a sample input:

{
  "requestId": "12345"
}

The requestId serves as a unique identifier for each task instance. It is passed into the workflow, forwarded to the Lambda function, and used to poll the task’s status from DynamoDB.

When the workflow is run, the InvokeLambdaTask triggers the Lambda function. The http_poll task continuously checks the status until it is completed.

Congratulations—you’ve successfully orchestrated a long-running API using Orkes Conductor and AWS. For a complete implementation walkthrough, refer to the tutorial on orchestrating long-running APIs.

Summary

Long-running APIs can easily break synchronous workflows, but with exemplary architecture, you can handle them reliably and at scale.

By combining asynchronous invocation, external status tracking, and polling using Orkes Conductor, you can build resilient and timeout-proof workflows. This pattern can be adapted for a wide range of real-world scenarios, from third-party service orchestration to internal background processing.
