Are Conductor Workflows Directed Acyclic Graph (DAG)?

Conductor workflows are directed acyclic graphs (DAGs). But what exactly is a DAG?

Let's go through each term that makes up this concept, but not necessarily in a specific order.

Graph

A graph is "a collection of vertices (or points) and edges (or lines) that indicate connections between the vertices."

By this definition, this is a graph - just not exactly correct in the context of DAGs:

pirate vs global warming graph

But in the context of workflows, we're thinking of a graph more like this:

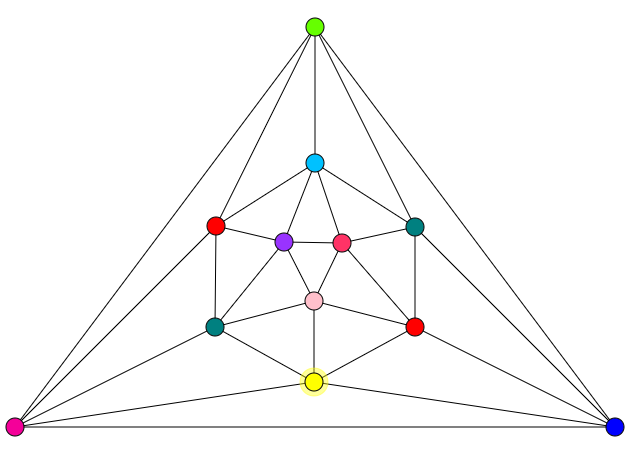

a regular graph (source: wikipedia)

Imagine each vertex as a microservice, and the lines are how the microservices are connected together. However, this graph is not a directed graph - as there is no direction given to each connection.

Directed

A directed graph means that there is a direction to each connection. For example, this graph is directed:

directed graph

Each arrow has a direction, Point "N" can proceed directly to "B", but "B" cannot proceed to "N" in the opposite direction.

Acyclic

Acyclic means without circular or cyclic paths. The directed example above shows A -> B -> D -> A is a cyclic loop.

So a Directed Acyclic Graph is a set of vertices where the connections are directed without any looping. DAG charts can only "move forward" and cannot redo a step (or series of steps.)

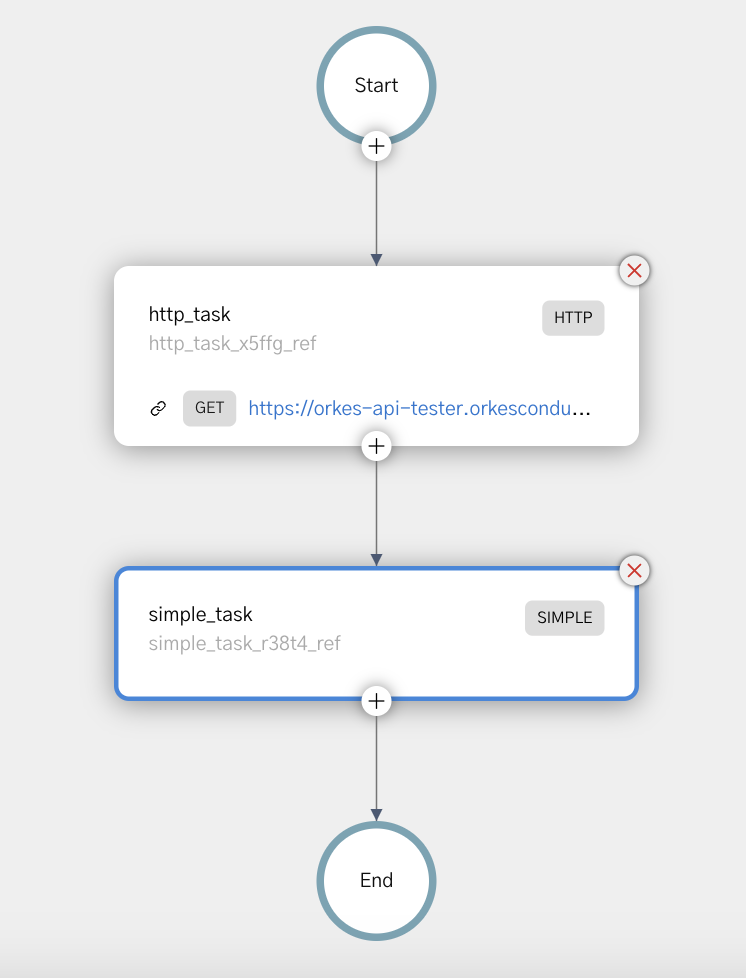

Since a Conductor workflow is a series of vertices that can connect in only a specific direction and cannot loop, a Conductor workflow is thus a directed acyclic graph:

Conductor Dag

Can a workflow have loops and still be a DAG?

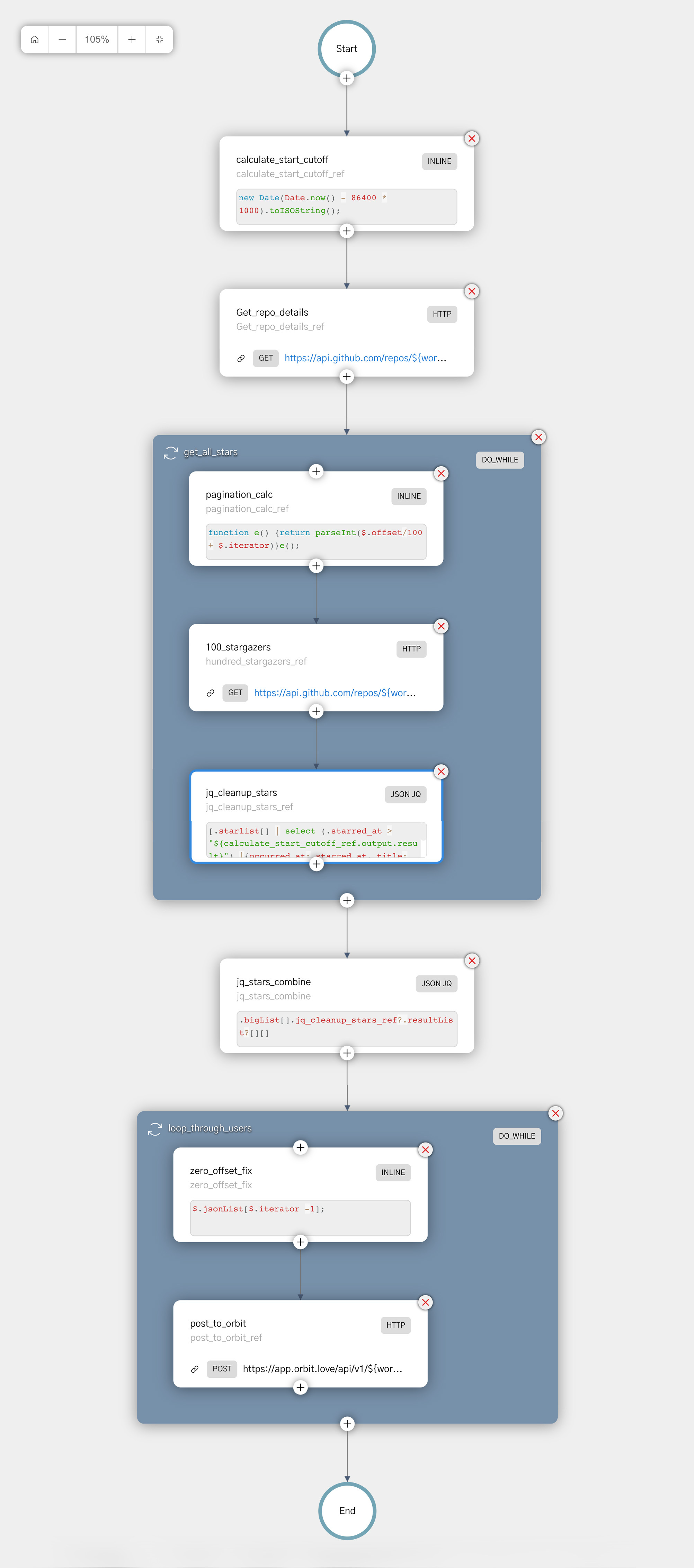

Yes. For example, Conductor workflows have Do-While loops:

Conductor Dag

This is still a DAG because the loop is just shorthand for running the tasks inside the loop over and over again. For example, if the 2nd loop in the above image is run 3 times, the workflow path will be:

  1. zero_offset_fix_1
  2. post_to_orbit_ref_1
  3. zero_offset_fix_2
  4. post_to_orbit_ref_2
  5. zero_offset_fix_3
  6. post_to_orbit_ref_3

The path is directed forward, and the loop just makes it easier to define the workflow.
