Retry Failed Workflow

Endpoint: POST /api/workflow/{workflowId}/retry

Retries a failed workflow execution from the last failed task. When invoked, the failed task is scheduled again, and the workflow moves to RUNNING status.

Path parameters

Parameter	Description	Type	Required/ Optional
workflowId	The execution ID of the failed workflow to retry.	string	Required.

Query parameters

Parameter	Description	Type	Required/ Optional
resumeSubworkflowTasks	(For cases where the last failed task is a Sub Workflow task) If set to true, the parent workflow is restarted from the sub-workflow’s last failed task. If set to false, a new sub-workflow execution is created. Default is false.	boolean	Optional.
retryIfRetriedByParent	(For cases where a sub-workflow is being retried) If set to false, the sub-workflow will be prohibited from retrying if its parent workflow has been retried before. Default is true.	boolean	Optional.

Response

Returns 204, indicating that the workflow execution has been restarted successfully from the last failed task.

Returns 400 if an invalid workflow execution is provided.

Examples

Retry failed workflow from last failed task

Request

curl -X 'POST' \
   'https://<YOUR-SERVER-URL>/api/workflow/2ce9207f-d4a6-11ef-87b1-b2b27c52ebde/retry' \
  -H 'accept: */*' \
  -H 'X-Authorization: <TOKEN>' \
  -d ''

Response

Returns 204, indicating that the workflow execution has been restarted successfully from the last failed task.

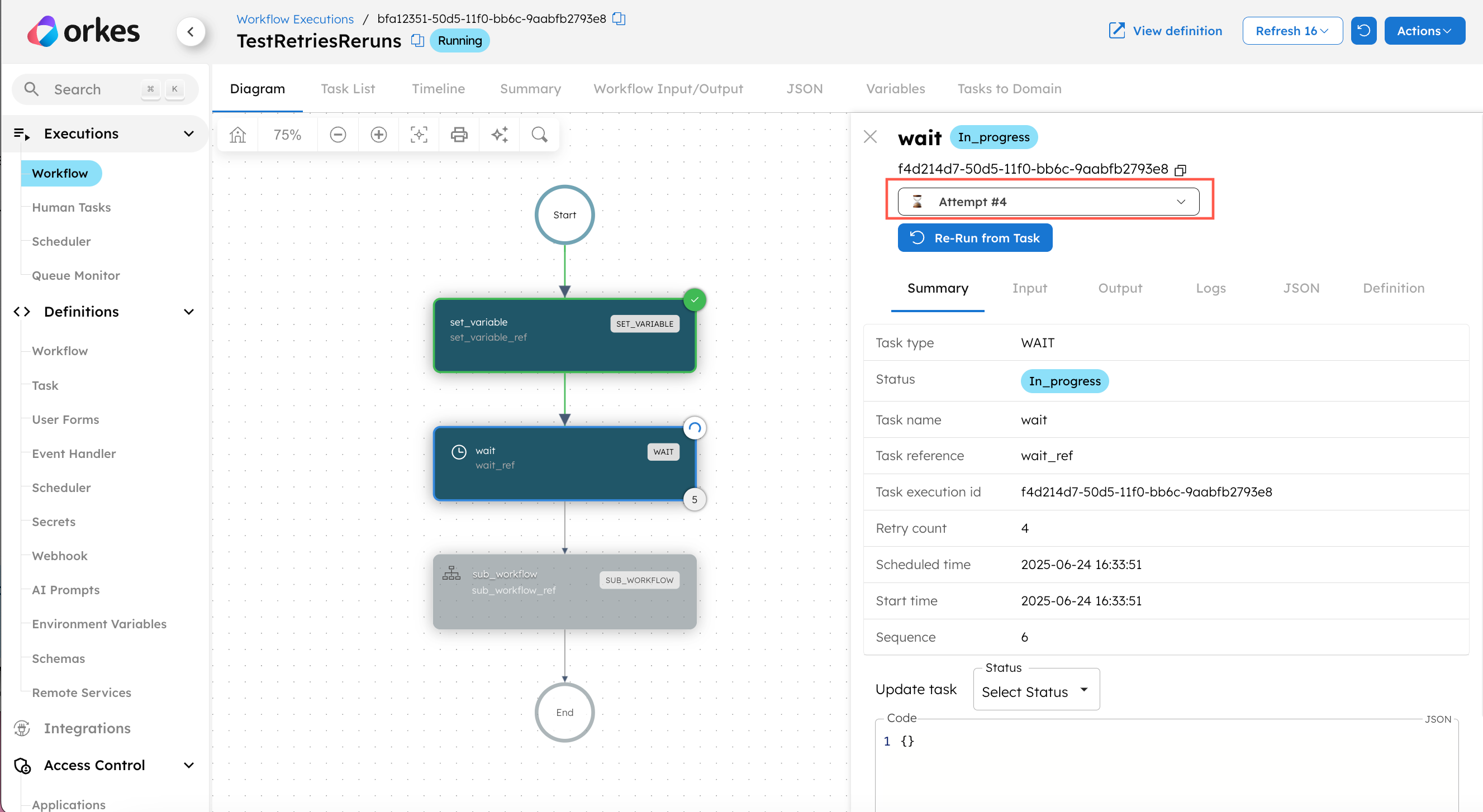

In the Conductor UI, the workflow execution will re-enter the RUNNING status, and the last failed task will be re-attempted.

Retry failed workflow from last failed Sub Workflow task when resumeSubworkflowTasks=true

Request

curl -X 'POST' \
  'https://<YOUR-SERVER-URL>/api/workflow/35831168-50da-11f0-bb6c-9aabfb2793e8/retry?resumeSubworkflowTasks=true' \
  -H 'accept: */*' \
  -H 'X-Authorization: <TOKEN>' \
  -d ''

Response

Returns 204, indicating that the workflow execution has been restarted successfully from the last failed task.

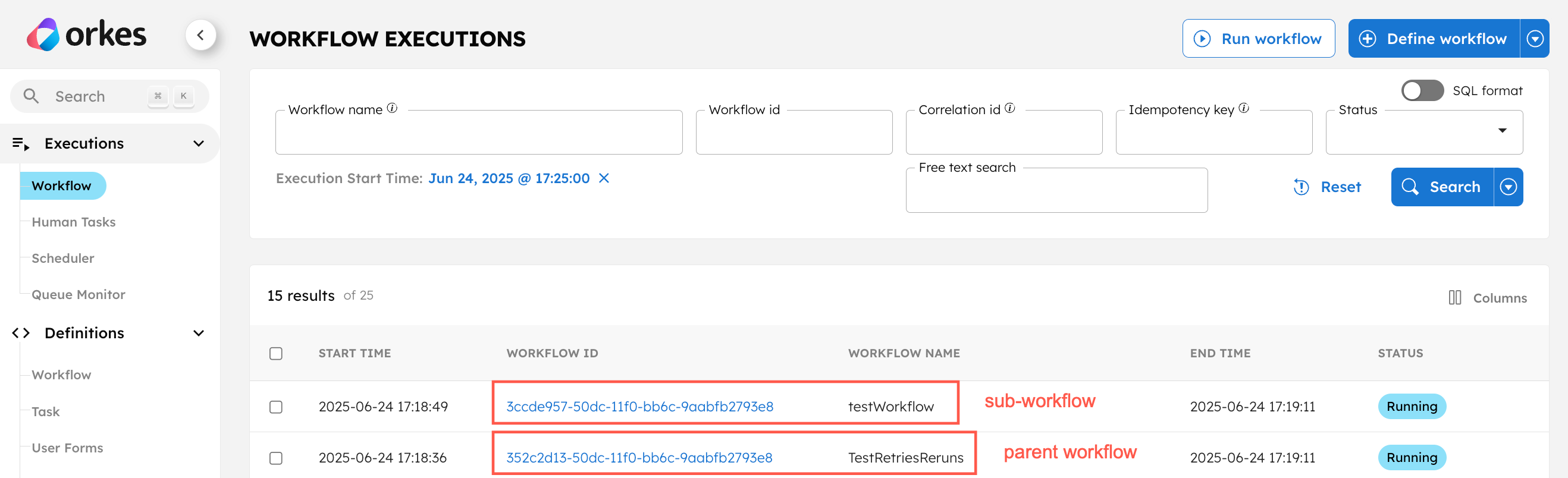

In the Conductor UI, both the parent workflow and sub-workflow execution will re-enter the RUNNING status.

Retry failed workflow from last failed Sub Workflow task when resumeSubworkflowTasks=false

Request

curl -X 'POST' \
  'https://<YOUR-SERVER-URL>/api/workflow/35831168-50da-11f0-bb6c-9aabfb2793e8/retry?resumeSubworkflowTasks=false' \
  -H 'accept: */*' \
  -H 'X-Authorization: <TOKEN>' \
  -d ''

Response

Returns 204, indicating that the workflow execution has been restarted successfully from the last failed task.

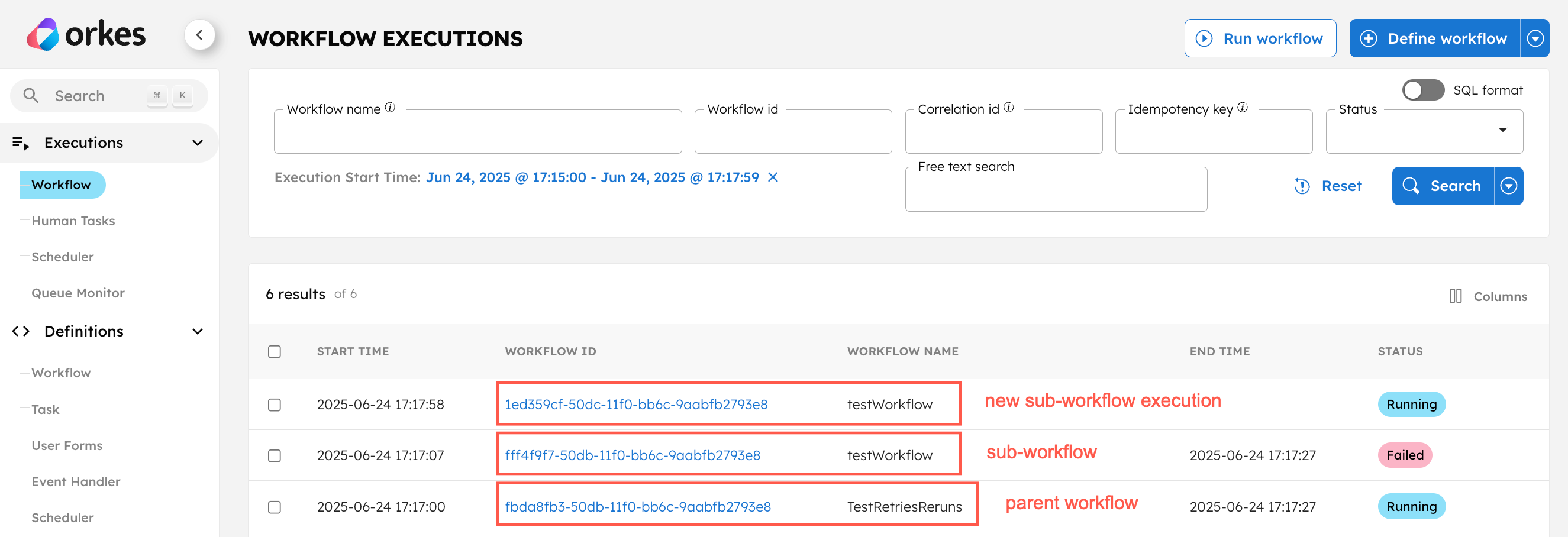

In the Conductor UI, the parent workflow execution will re-enter the RUNNING status, and a new sub-workflow execution instance will be created.

Retry sub-workflow when retryIfRetriedByParent=false

This example demonstrates how a retry attempt on a sub-workflow is blocked when:

1. A sub-workflow has failed.
2. Its parent workflow has already been retried.
3. A retry is attempted on the sub-workflow with retryIfRetriedByParent=false.

Start a workflow that includes a sub-workflow. Initially, both executions are in RUNNING status.

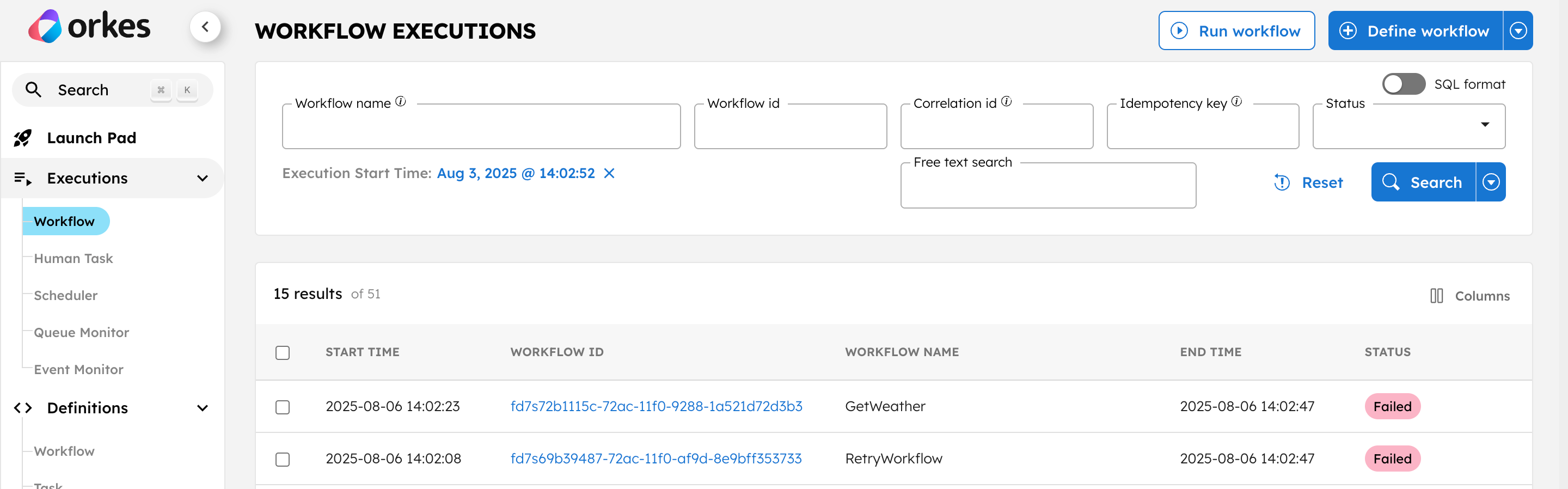

Now, let’s assume the sub workflow failed, resulting in both the sub-workflow and the parent workflow entering FAILED status.

Use the following API call to retry the parent workflow:

curl -X 'POST' \
  'https://<YOUR-SERVER-URL>/api/workflow<PARENT-WORKFLOW-ID>/retry' \
  -H 'accept: */*' \
  -H 'X-Authorization: <TOKEN>' \
  -d ''

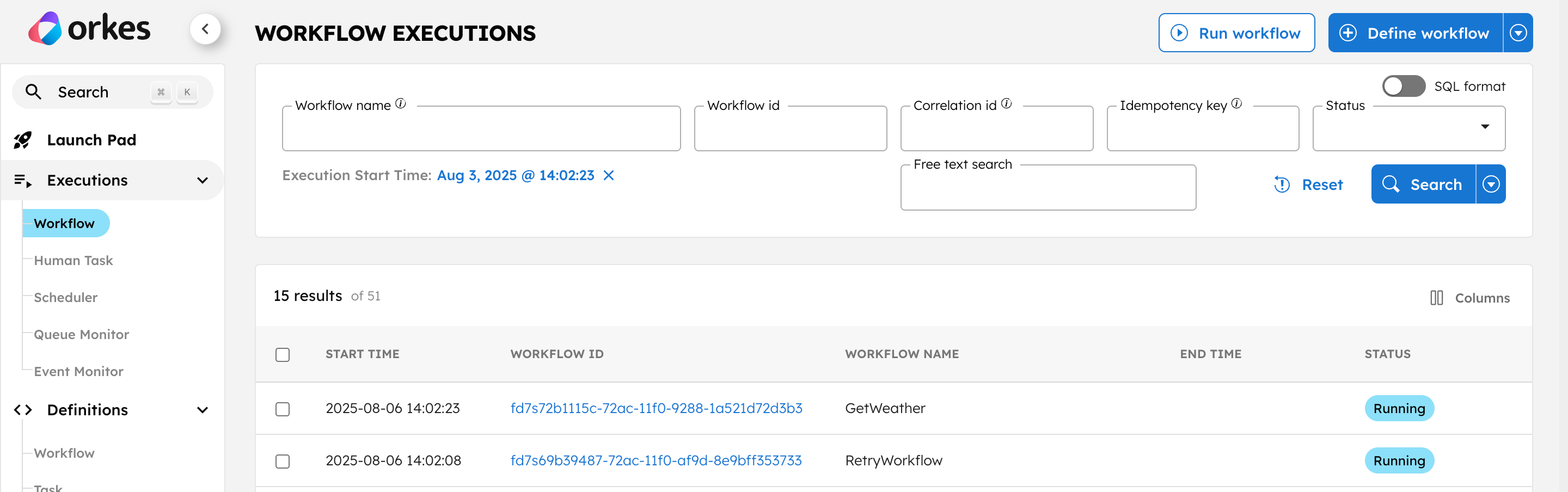

The parent workflow is successfully retried and transitions to RUNNING. The previous sub-workflow execution remains FAILED.

Now attempt to retry the initially failed sub-workflow using the following call with retryIfRetriedByParent=false:

curl -X 'POST' \
  'https://<YOUR-SERVER-URL>/api/workflow/<SUB-WORKFLOW-ID>/retry?retryIfRetriedByParent=false' \
  -H 'accept: */*' \
  -H 'X-Authorization: <TOKEN>' \
  -d ''

Response

{
  "status": 400,
  "message": "Parent task fd7sdfe33153-71df-11f0-af9d-8e9bff353733 of workflow fd7sd6e353e6-71df-11f0-9288-1a521d72d3b3 is already retried, retrying subworkflow fd7sdfe442c4-71df-11f0-af9d-8e9bff353733 is prohibited because retryIfHasParent=false in retry request",
  "instance": "orkes-conductor-deployment-84d9984cb8-r7rrd",
  "retryable": false
}

This error confirms that Conductor blocks the retry because the parent workflow has already been retried, and retryIfRetriedByParent=false prohibits retrying the sub-workflow independently.
