Google Sheets Operations Reference

Orkes Conductor integrates with Google Sheets to let you create and manage spreadsheets directly from your workflows. You can use the following operations to create, read, update, and modify content in Google Sheets, without leaving your workflow.

This page covers the parameters and expected output for each operation available in the Google Sheets integration.

Create Spreadsheet

Create a new Google Sheets spreadsheet with the provided title. Use this when a workflow needs a fresh spreadsheet to hold tabular data produced by the integration or AI.

Input Parameters

Parameter	Description	Type	Required/Optional
Title	The title of the spreadsheet.	string	Required.

Output Parameters

Returns a full Spreadsheet object containing spreadsheetId, spreadsheetUrl, properties, and sheets. For the complete schema, refer to the Google Sheets API documentation.

Delete Spreadsheet

Delete an entire spreadsheet by ID. Use this when a workflow needs to remove a spreadsheet after exporting or archiving its data.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to delete. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the deleted spreadsheet.
name	The title of the deleted spreadsheet.
deleted	Confirms whether the spreadsheet was successfully deleted.

Append Values

Append one or more rows to a specified range in a sheet. Accepts a 2D array, letting you write multiple rows in a single operation. Use this when you want to log events, metrics, or AI-generated outputs by adding new rows at the bottom of a table.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to append. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Range	The range to append values to, in A1 notation. For example: Sheet1!A1.	string	Required.

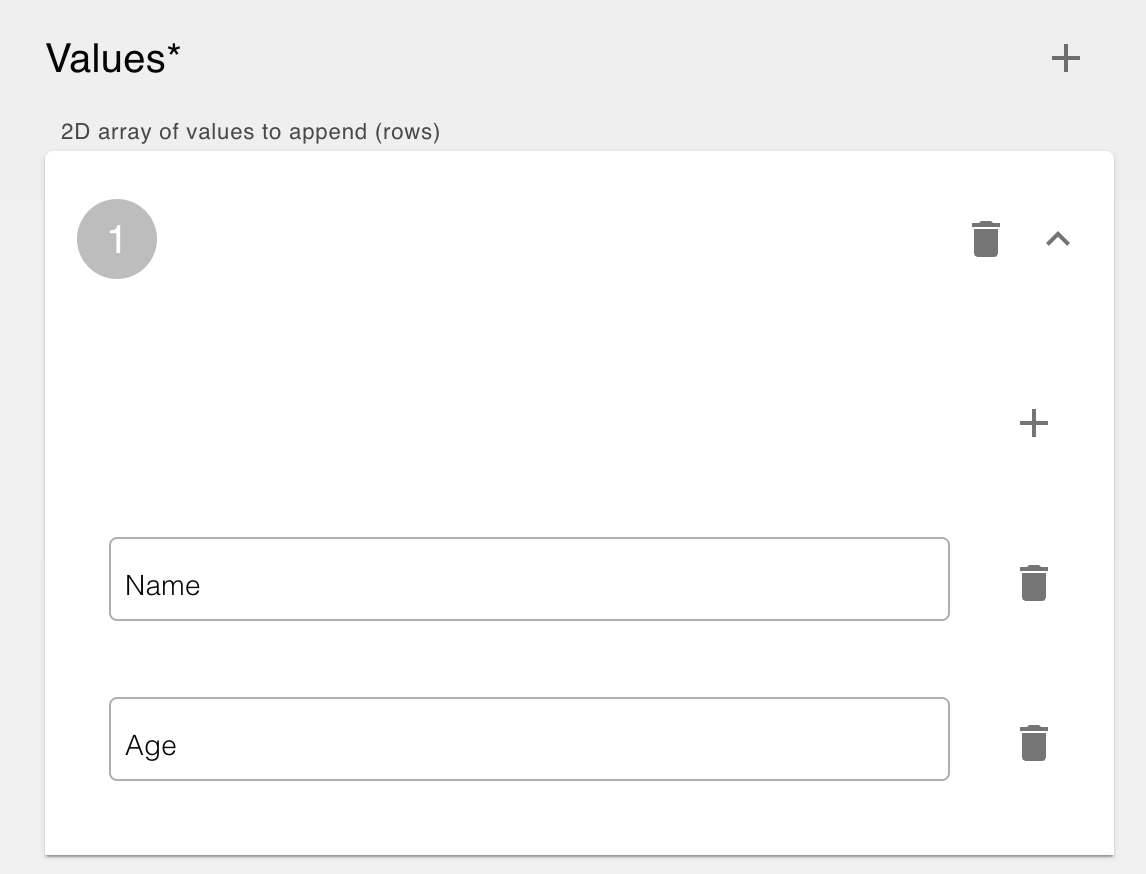

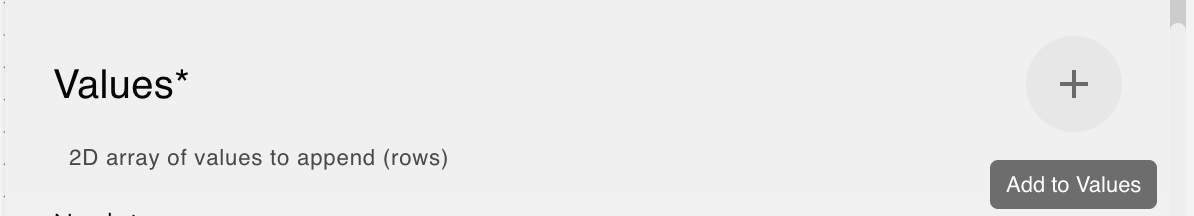

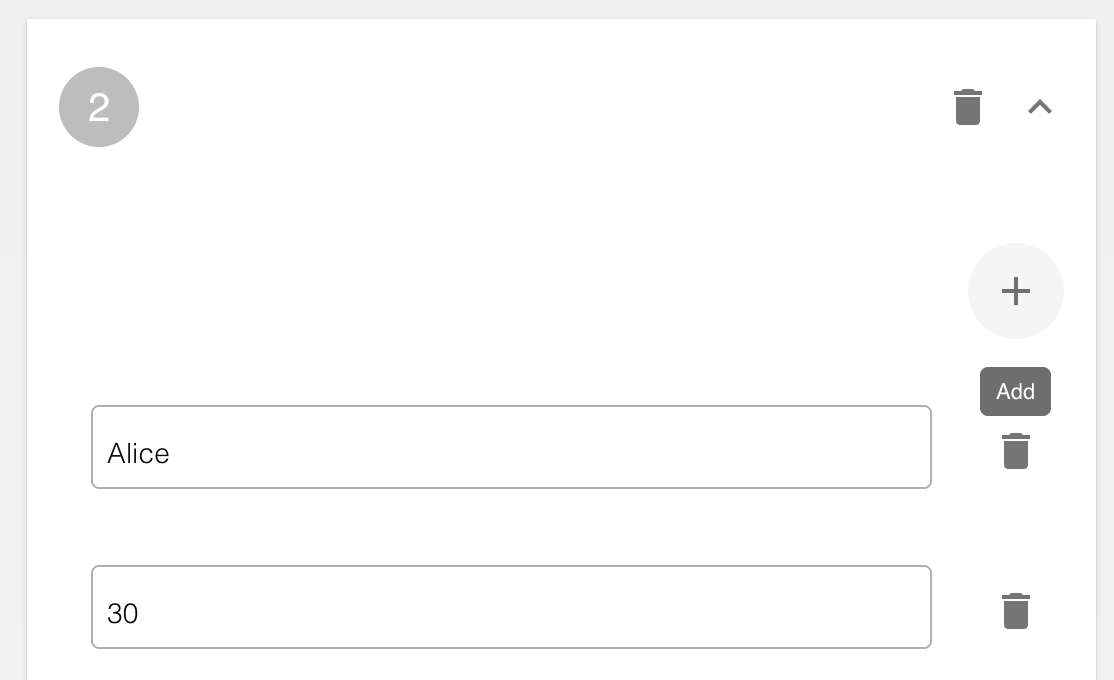

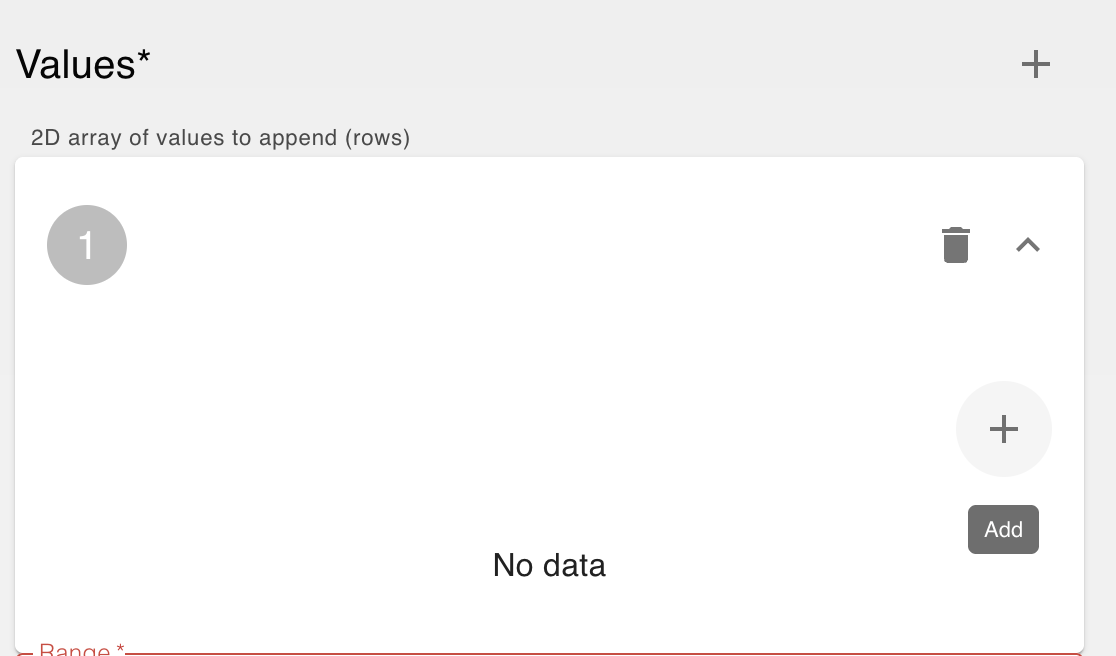

Values	A 2D array of rows and values to append to the sheet. Each row is a numbered block, and each value within a row corresponds to a cell in that row. To configure in the UI: Select + at the top of the Values field to add a row. Within the row, select + to add a cell value. Repeat to add more values to the same row. Select + at the top again to add another row. Repeat as needed. Example: To append two rows where each row has a Name and Age, configure row 1 with Name and Age, and row 2 with Alice and 30.	array of arrays	Required.
Value Input Option	Determines how the input values are interpreted. Supported values: USER_ENTERED; Mimics a user typing into the cell, parsing numbers, dates, booleans, and formulas. RAW: Stores values exactly as-is without any parsing. Defaults to USER_ENTERED.	string	Optional.
Include Values in Response	Set to true to include the appended data in the response.	boolean	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the values were appended to.
tableRange	The range of the existing table in the sheet.
updates	Contains the details of the update, including updatedRange, updatedRows, updatedColumns, updatedCells, and optionally updatedData when Include Values in Response is set to true.

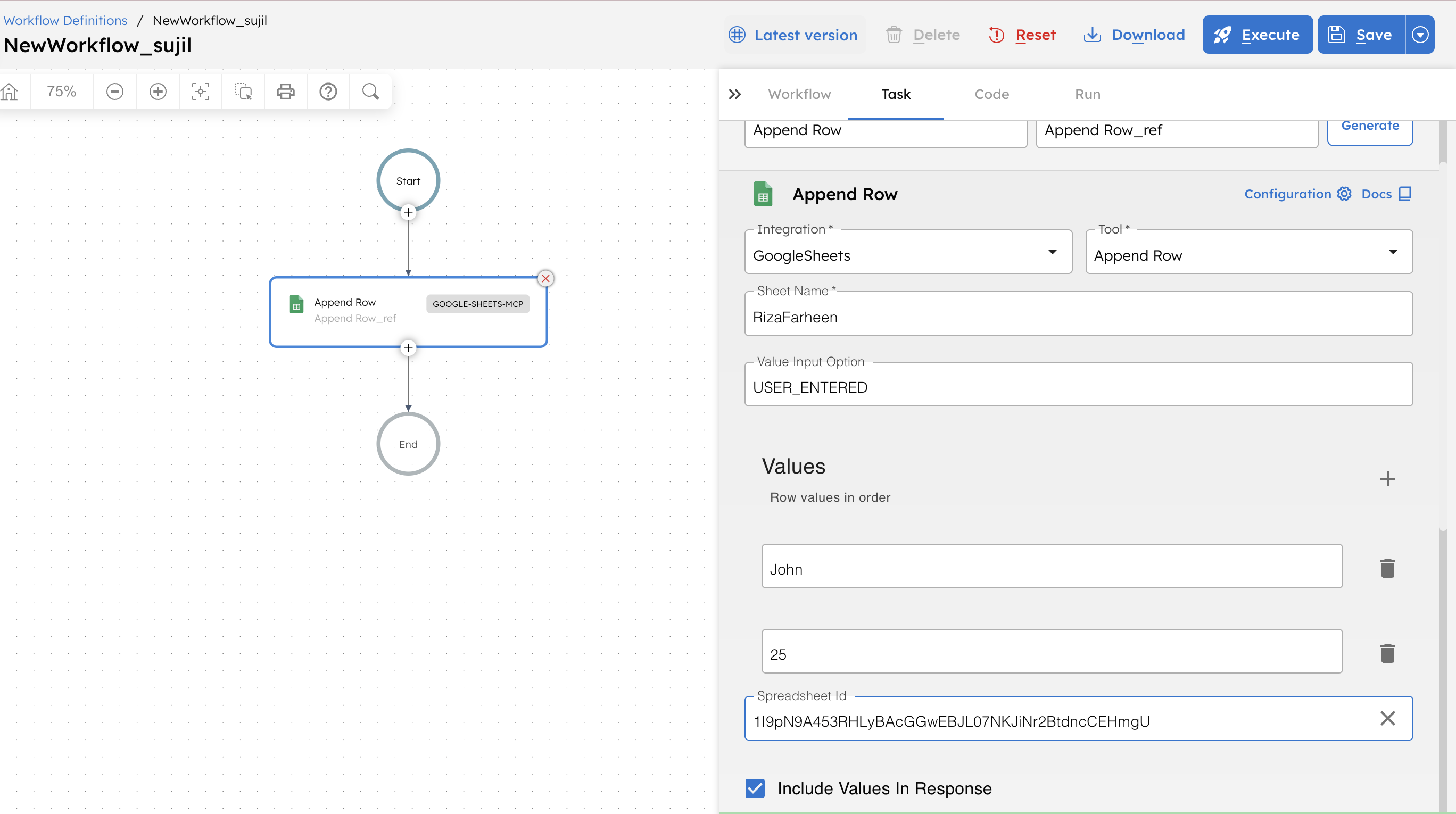

Append Row

Append a single row to a sheet using a flat array, without requiring a range. Use this when you are adding one record at a time.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to append the row to. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet tab where the row will be appended. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Required.
Values	An array of values to append as a single row. Each value corresponds to a cell in the row, in column order. To configure in the UI: Select + next to Values to add a cell value. Repeat to add more values in the same row. Example: To append a row with a name and age, add John as the first value and 25 as the second.	array of strings	Required.
Value Input Option	Determines how the input values are interpreted. Supported values: USER_ENTERED; Mimics a user typing into the cell, parsing numbers, dates, booleans, and formulas. RAW: Stores values exactly as-is without any parsing. Defaults to USER_ENTERED.	string	Optional.
Include Values in Response	Set to true to include the appended data in the response.	boolean	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the row was appended to.
tableRange	The range of the existing table in the sheet.
updatedRange	The range where the row was appended.
updatedRows	The number of rows appended.
updatedColumns	The number of columns updated.
updatedCells	The total number of cells updated.
action	The action performed. Returns "appended".
updatedValues	The appended row data. Returned only when Include Values in Response is set to true.

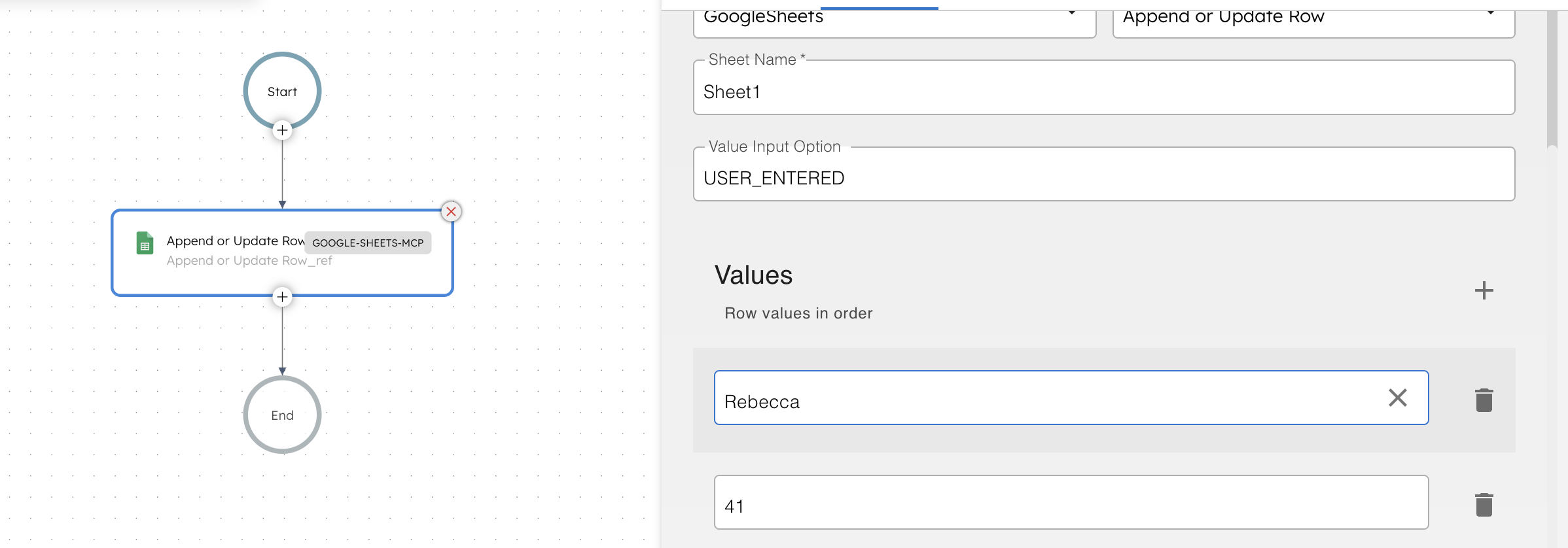

Append or Update Row

Append a row when it does not exist, or update it if it already exists. Checks a specific row index before writing, preventing duplicates. Use this when you want to ensure a specific row index is populated.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to append or update the row in. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet where the row will be appended or updated. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Required.
Row Index	The 1-based index of the row to update. For example, 1 refers to the first row. If the row does not exist, a new row is appended.	integer	Required.
Values	An array of values to append or update as a single row, in order. Each value corresponds to a cell in the row, in column order. To configure in the UI: Select + next to Values to add a cell value. Repeat to add more values in the same row. Example: To append a row with a name and age, add Rebecca as the first value and 41 as the second.	array of strings	Required.
Value Input Option	Determines how the input values are interpreted. Supported values: USER_ENTERED; Mimics a user typing into the cell, parsing numbers, dates, booleans, and formulas. RAW: Stores values exactly as-is without any parsing. Defaults to USER_ENTERED.	string	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the row was appended or updated in.
tableRange	The range of the existing table in the sheet. Returns null when a row is updated.
updatedRange	The range of the row that was appended or updated.
updatedRows	The number of rows appended or updated.
updatedColumns	The number of columns updated.
updatedCells	The total number of cells updated.
action	Indicates whether the row was appended or updated. Returns updated if the row existed, or appended if a new row was added.
updatedValues	The appended or updated row data.

Read Values

Read values from a specified range in a sheet. Use this when spreadsheet data is needed as input or context for downstream workflow steps.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to read values from. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Range	The range to read values from, in A1 notation. For example: Sheet1!A1:C10.	string	Required.

Output Parameters

Parameter	Description
majorDimension	The major dimension of the returned values. Returns ROWS by default, where each inner array represents a row.
range	The range the values cover, in A1 notation.
values	The data read from the sheet, returned as a 2D array. Each inner array represents a row, and each item in the inner array corresponds to a cell. Empty trailing rows and columns are not included.

Get Rows

Read all rows from a sheet. Use this when you need the full table contents.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to get rows from. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet to retrieve rows from. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Required.
Range Override	Limits the rows retrieved to a specific range in A1 notation. For example: Sheet1!A1:C10. If not provided, all rows in the sheet are returned.	string	Optional.

Output Parameters

Parameter	Description
majorDimension	The major dimension of the returned values. Returns ROWS by default, where each inner array represents a row.
range	The range the values cover, in A1 notation.
values	The data read from the sheet, returned as a 2D array. Each inner array represents a row, and each item in the inner array corresponds to a cell. Empty trailing rows and columns are not included.

Update Row

Update a specific row by index. Use this when you need to overwrite a row's contents.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to update the row in. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet where the row will be updated. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Required.
Row Index	The 1-based index of the row to update. For example, 1 refers to the first row.	integer	Required.
Values	An array of values to update in a single row. Each value corresponds to a cell in the row, in column order.To configure in the UI: Select + next to Values to add a cell value. Repeat to add more values in the same row. Example: To append a row with a name and age, add John as the first value and 25 as the second.	array of strings	Required.
Value Input Option	Determines how the input values are interpreted. Supported values: USER_ENTERED; Mimics a user typing into the cell, parsing numbers, dates, booleans, and formulas. RAW: Stores values exactly as-is without any parsing. Defaults to USER_ENTERED.	string	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet where the rows were updated.
tableRange	The range of the existing table in the sheet. Returns null when a row is updated.
updatedRange	The range where the row was updated.
updatedRows	The number of rows updated.
updatedColumns	The number of columns updated.
updatedCells	The total number of cells updated.
action	The action performed. Returns "updated".
updatedValues	The updated row data.

Clear Range

Clear values from a specified range in a sheet. Use this when you want to reset or overwrite a region before writing fresh data.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to clear the range in. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Range	The range to clear, in A1 notation. For example: Sheet1!A1:C10.	string	Required.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the range was cleared in.
clearedRange	The range that was cleared, in A1 notation. If the requested range exceeded the sheet's bounds, this reflects the actual range that was cleared.

Clear Sheet

Clear all values from a sheet while keeping the sheet structure. Use this when you want to reset the entire tab.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID containing the sheet to clear. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet to clear all values from. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Required.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the sheet was cleared in.
clearedRange	The range that was cleared, in A1 notation.

Create Sheet

Create a new sheet (tab) within a spreadsheet. Use this when you need a fresh tab for new data.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID to create the sheet in. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The name of the sheet to create.	string	Required.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the sheet was created in.
sheetId	The unique ID of the newly created sheet.
sheetName	The name of the newly created sheet.

Delete Sheet

Delete a sheet (tab) from a spreadsheet. Use this when a tab is no longer needed.

Input Parameters

Parameter	Description	Type	Required/Optional
Spreadsheet Id	The spreadsheet ID containing the sheet to delete. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Sheet Name	The sheet name to delete.	string	Optional.
Sheet Id	The unique ID of the sheet to delete. The unique ID of the sheet to delete. To get the sheet ID, open the spreadsheet and select the sheet. The ID is the string after ?gid= in the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/edit?gid=<YOUR-SHEET-ID>.	integer	Optional.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the sheet was deleted from.
sheetId	The unique ID of the deleted sheet.
sheetName	The name of the deleted sheet.
deleted	Confirms whether the sheet was successfully deleted.

Delete Rows or Columns

Delete a range of rows or columns from a sheet. Use this when you need to remove blocks of data.

Input Parameters

Parameter	Description	Type	Required/Optional
Start Index	The 0-based, inclusive index of the first row or column to delete. For example, to delete the first row, set Start Index to 0.	integer	Required.
Sheet Name	The name of the sheet to delete the rows or columns from. This is the tab label visible at the bottom of the spreadsheet (for example, Sheet1), not the spreadsheet title shown at the top of the page.	string	Optional.
End Index	The 0-based, exclusive index of the last row or column to delete. For example, to delete rows 1 and 2, set Start Index to 0 and End Index to 2.	integer	Required.
Sheet Id	The unique ID of the sheet to delete rows or columns from. The unique ID of the sheet to delete. To get the sheet ID, open the spreadsheet and select the sheet. The ID is the string after ?gid= in the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/edit?gid=<YOUR-SHEET-ID>.	integer	Optional.
Spreadsheet Id	The spreadsheet ID containing the sheet. If left empty/blank, it falls back to the default spreadsheet provided in the integration. To get the spreadsheet ID, open the spreadsheet in Google Sheets. The ID is the string of characters at the end of the URL: https://docs.google.com/spreadsheets/d/<YOUR-SPREADSHEET-ID>/.	string	Optional.
Dimension	Specifies whether to delete rows or columns. Supported values: ROWS: Deletes the specified rows. COLUMNS: Deletes the specified columns.	string	Required.

Output Parameters

Parameter	Description
spreadsheetId	The ID of the spreadsheet the rows or columns were deleted from.
sheetId	The unique ID of the sheet the rows or columns were deleted from.
dimension	Indicates whether rows or columns were deleted.
startIndex	The start index of the deleted range.
endIndex	The end index of the deleted range.
deleted	Confirms whether the rows or columns were successfully deleted.
