Event Handler

An event handler is a way for us to receive messages into the Conductor. An event can be directed to do one of the following things:

Start Workflow
Update Workflow Variables
Terminate Workflow
Complete Task
Fail Task

Configuring an Event Handler

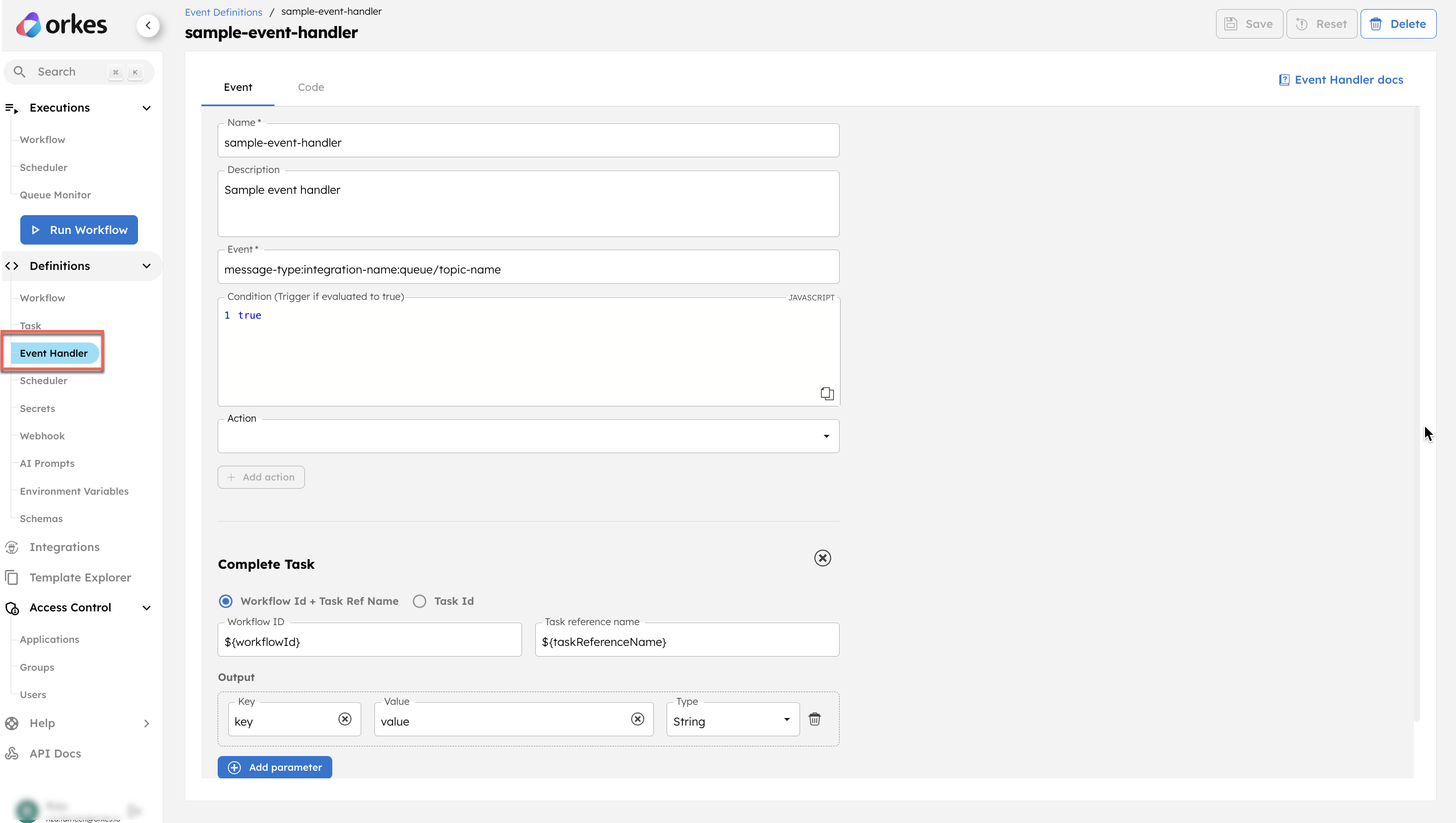

Compose the following configuration payload as per the connectivity you have already added to the Conductor instance. This payload can then be used in the UI or via API to configure. In the UI go to Event Handlers on the left menu. For API use POST /api/event .

{
  "name": "<NAME of the EVENT HANDLER>",
  "event": "azure:<QUEUE_CONFIG_NAME>:<QUEUE_NAME>",
  "condition": "true",
  "actions": [
    {
      "action": "<ACTION>",
      <ACTION INPUT PARAMS>,
      "expandInlineJSON": false
    }
  ],
  "active": true,
  "evaluatorType": "graaljs",
  "createdBy": "boney@orkes.io"
}

Parameter	Description
name	The name of the event handler.
event	In the format: Type : Config Name : Queue Name Example:azure:orkes-dev-test:test_queue
condition	ECMAScript (Javascript) to control the message processing. Add a JS function and return true under the condition you want this message to be processed. See the example below (How to use conditions to filter events?)
evaluatorType	Evaluator type for the condition fixed as - graaljs.
actions	Array of actions.
actions.action	Selected Action Name, possible values are: fail_task update_workflow_variables terminate_workflow complete_task start_workflow
ACTION INPUT PARAMS	Each type of action requires and supports a certain set of input parameters. See the actions section below for the fields per action.
active	Set this to true or false. It determines if the event handler is running or not.

How to use conditions to filter events?

Given the following payload in the message:

{
    "fileType": "AUDIO",
    "version": 3,
    "metadata": {
       "length": 300,
       "codec": "aac"
    }
}

The following expressions can be used in condition with the indicated results:

Expression	Result
$.version > 1	true
$.version > 10	false
$.metadata.length == 300	true

note

In order to pass complete payload, ${$} has to be used as value

Actions - Start Workflow

This action will start a new instance of a workflow that is defined in the system. Example payload:

{
  "name": "orkes-dev-test",
  "event": "azure:orkes-dev-test:test_queue",
  "condition": "true",
  "actions": [
    {
      "action": "start_workflow",
      "start_workflow": {
        "name": "sample_wf",
        "version": "",
        "correlationId": "",
        "input": {
          "metadata": "${metadata}",
          "additionalVariable": "something" ,
          "payload" : "${$}"
        }
      },
      "expandInlineJSON": false
    }
  ],
  "active": true,
  "evaluatorType": "javascript",
  "createdBy": "boney@orkes.io"
}

Actions - Update Workflow Variables

This action will update the variables of a running workflow. Useful to control the inputs used in a long running workflow. Example payload:

{
  "name": "orkes-dev-test",
  "event": "azure:orkes-dev-test:test_queue",
  "condition": "true",
  "actions": [
    {
      "action": "update_workflow_variables",
      "expandInlineJSON": false,
      "update_workflow_variables": {
        "workflowId": "${targetWorkflowId}",
        "appendArray": true,
        "variables": {
          "Some-Key-aqxep": "${workflowId}",
          "Some-Key-b08ll": "Some-Value-b08ll"
        }
      }
    }
  ],
  "active": true,
  "evaluatorType": "javascript",
  "createdBy": "boney@orkes.io"
}

Input Field Name	Behavior
appendArray	If this field is set to true, then if the variable that is being updated is an array, the system will append the incoming value of the existing array. If this field is false, the value is set directly as is.
workflowId	Workflow ID of which the variables should be updated.

Actions - Terminate Workflow

This action will terminate a running workflow. Example payload:

{
  "name": "orkes-dev-test",
  "event": "azure:orkes-dev-test:test_queue",
  "condition": "true",
  "actions": [
    {
      "action": "terminate_workflow",
      "expandInlineJSON": false,
      "terminate_workflow": {
        "workflowId": "${workflowId}",
        "terminationReason": "Testing termination from an event"
      }
    }
  ],
  "active": true,
  "evaluatorType": "javascript",
  "createdBy": "boney@orkes.io"
}

Input Field Name	Behavior
terminationReason	The reason to set when terminating the workflow.
workflowId	ID of the workflow to be terminated.

Actions - Complete Task

This action will mark a running task as completed. Example payload:

{
  "name": "orkes-dev-test",
  "event": "azure:orkes-dev-test:test_queue",
  "condition": "true",
  "actions": [
    {
      "action": "complete_task",
      "expandInlineJSON": false,
      "complete_task": {
        "workflowId": "${workflowId}",
        "taskRefName": "${taskReferenceName}",
        "output": {
          "Some-Key-a8gvu": "Some-Value-a8gvu",
          "Some-Key-moua4": "Some-Value-moua4"
        }
      }
    }
  ],
  "active": true,
  "evaluatorType": "javascript",
  "createdBy": "boney@orkes.io"
}

Input Field Name	Behavior
taskRefName	The task reference name of the task to be updated.
workflowId	The workflow ID that contains the task.
taskId	If this field is present, this takes precedence and will complete a task running with this ID. Example: "taskId": "${event.payload.taskId}",

Actions - Fail Task

This action will mark a running task as failed. Example payload:

{
  "name": "orkes-dev-test",
  "event": "azure:orkes-dev-test:test_queue",
  "condition": "true",
  "actions": [
    {
      "action": "fail_task",
      "expandInlineJSON": false,
      "fail_task": {
        "workflowId": "${workflowId}",
        "taskRefName": "${taskReferenceName}",
        "output": {
          "Some-Key-5u0xj": "Some-Value-5u0xj",
          "Some-Key-r3pja": "Some-Value-r3pja"
        }
      }
    }
  ],
  "active": true,
  "evaluatorType": "javascript",
  "createdBy": "boney@orkes.io"
}

Input Field Name	Behavior
taskRefName	The task reference name of the task to be failed.
workflowId	The workflow ID that contains the task.
taskId	If this field is present, this takes precedence and will fail a task running with this id. Example: "taskId": "${taskId}"
