Get Signed JWT

Available since

v3.3.43 and later

The Get Signed JWT task is used to sign a JWT (JSON Web Token).

Using the RS256 algorithm, the task ensures robust cryptographic security during JWT signing. The resulting token effectively encapsulates specified authorization scopes and incorporates a TTL (time-to-live) mechanism to enforce its expiration, thereby maintaining secure access control.

Task parameters

Configure these parameters for the Get Signed JWT task.

Parameter	Description	Required/ Optional
inputParameters. subject	The subject of the JWT, typically representing the entity (e.g., user or service) for which the token is issued.	Required.
inputParameters issuer	The entity issuing the JWT, identifying who created and signed the token.	Required.
inputParameters. privateKey	The private key used to sign the JWT. This key needs to be in PKCS#8 format.	Required.
inputParameters. privateKeyId	The identifier for the private key used to sign the JWT.	Required.
inputParameters. audience	The intended recipient(s) of the JWT.	Required.
inputParameters. ttlInSeconds	The time-to-live (TTL) or expiration time of the JWT, specified in seconds.	Required.
inputParameters. scopes	The scopes associated with the JWT, defining the access permissions granted by the token. It can be a string or an array of strings.	Required.
inputParameters. algorithm	The signing algorithm to use for the JWT. Currently set to RS256, which refers to the RSA signature with the SHA-256 hash algorithm.	Required.

Caching parameters

You can cache the task outputs using the following parameters. Refer to Caching Task Outputs for a full guide.

Parameter	Description	Required/ Optional
cacheConfig.ttlInSecond	The time to live in seconds, which is the duration for the output to be cached.	Required if using cacheConfig.
cacheConfig.key	The cache key is a unique identifier for the cached output and must be constructed exclusively from the task’s input parameters. It can be a string concatenation that contains the task’s input keys, such as `${uri}-${method}` or `re_${uri}_${method}`.	Required if using cacheConfig.

Schema parameters

You can enforce input/output validation for the task using the following parameters. Refer to Schema Validation for a full guide.

Parameter	Description	Required/ Optional
taskDefinition.enforceSchema	Whether to enforce schema validation for task inputs/outputs. Set to true to enable validation.	Optional.
taskDefinition.inputSchema	The name and type of the input schema to be associated with the task.	Required if enforceSchema is set to true.
taskDefinition.outputSchema	The name and type of the output schema to be associated with the task.	Required if enforceSchema is set to true.

Other generic parameters

Here are other parameters for configuring the task behavior.

Parameter	Description	Required/ Optional
optional	Whether the task is optional. The default is false. If set to true, the workflow continues to the next task even if this task is in progress or fails.	Optional.

Task output

The Get Signed JWT task will return the signed JWT in the secret variable _secrets. The signed JWT will be masked (***).

Task configuration

This is the task configuration for a Get Signed JWT task.

{
  "name": "get_signed_jwt",
  "taskReferenceName": "get_signed_jwt_ref",
  "inputParameters": {
    "subject": "${workflow.input.subject}",
    "issuer": "${workflow.input.issuer}",
    "privateKey": "${workflow.secrets.jwt-privatekey}",
    "privateKeyId": "key-123",
    "audience": "${workflow.input.audience}",
    "ttlInSeconds": 3600,
    "scopes": "${workflow.input.scope}",
    "algorithm": "RS256"
  },
  "type": "GET_SIGNED_JWT"
}

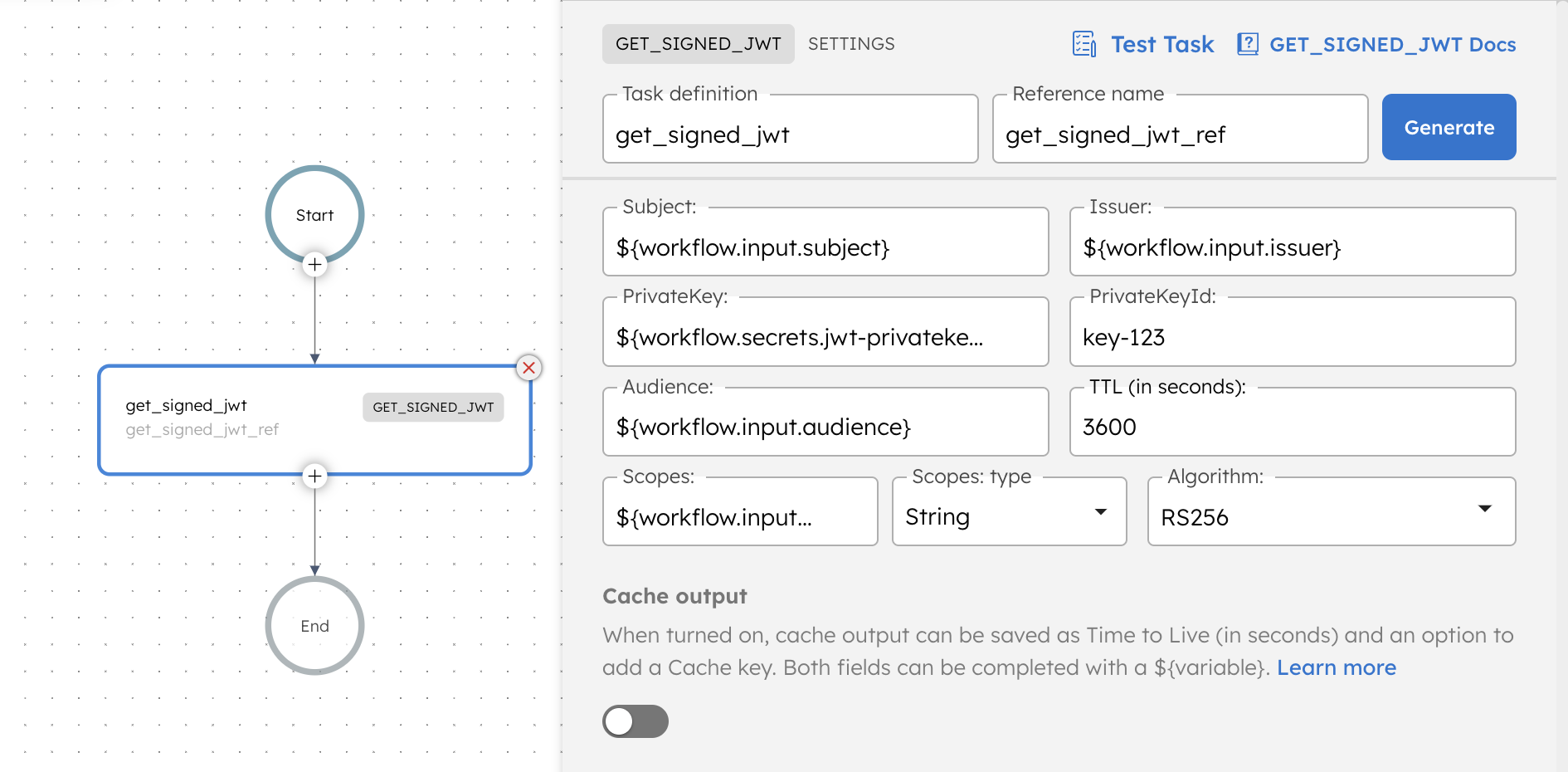

Adding a Get Signed JWT task in UI

To add a Get Signed JWT task:

In your workflow, select the (+) icon and add a Get Signed JWT task.
Enter the Subject and Issuer of the JWT.
Provide the PrivateKey and PrivateKeyId used for signing JWT.
Set the Audience, TTL (in seconds), Scopes, and Algorithm as required.

Adding Get Signed JWT task

Examples

Here are some examples for using the Get Signed JWT task.

Authorization

{
  "name": "get_signed_jwt_token",
  "taskReferenceName": "get_signed_jwt_token_ref",
  "inputParameters": {
    "privateKey": "${workflow.secrets.gcp_private_key}",
    "privateKeyId": "${workflow.secrets.gcp_private_key_id}",
    "audience": "https://oauth2.googleapis.com/token",
    "ttlInSecond": 3600,
    "scopes": [
      "https://www.googleapis.com/auth/cloud-platform",
      "https://www.googleapis.com/auth/documents",
      "https://www.googleapis.com/auth/drive"
    ],
    "subject": "service-account-name@project-id.iam.gserviceaccount.com",
    "issuer": "service-account-name@project-id.iam.gserviceaccount.com"
  },
  "type": "GET_SIGNED_JWT"
}
