EVENT is a task used to publish an event into one of the supported eventing systems in Conductor. Conductor supports the following eventing models:

  • AWS SQS (type: sqs)
  • Azure Service Bus (type: azure)
  • Kafka (type: kafka)

All of these require additional configuration to enable connectivity.


Configuration for publishing an event into AWS SQS to notify an external system.

"name": "event_task",
"taskReferenceName": "event_task_ref",
"type": "EVENT",
"sink": "sqs:sqs_queue_name",
"inputParameters" : {
// payload

Use the sink prefix depending on the type of sink you are using - ex: azure: for Azure Service Bus.

Input Parameters

sinkProvide the event queue in the format of prefix:location. The Prefix is either sqs, or kafka, and the location specifies the actual queue name. e.g., sqs:send_email_queue.
inputParametersAll of the input params to this task execution will be sent as the payload to the event sink.

Additional System Inputs to Payload

Conductor will add the following parameters to the payload, so it is important to ensure that these fields are not present in the original payload as they will be overwritten during execution

  • workflowInstanceId - Workflow id from where this event was sent.
  • workflowType - Name of the workflow definition.
  • workflowVersion - Version of the workflow definition.
  • correlationId - Correlation id of the workflow execution.

For example, for the definition below,

"name": "event_task",
"taskReferenceName": "event_task_ref",
"type": "EVENT",
"sink": "kafka:external_event_name",
"inputParameters": {
"myKey": "myValue",
"myNumber": 100

when executed will produce the following output.

"myKey": "myValue",
"myNumber": 100,
"workflowInstanceId" : "967b19ae-10d1-4b23-b0e7-ae324524dac0",
"workflowType" : "my-workflow-name",
"workflowVersion" : "1",
"correlationId" : "fbdcafd2-69c7-4b75-8dd1-653e33d48746",

Output Parameters

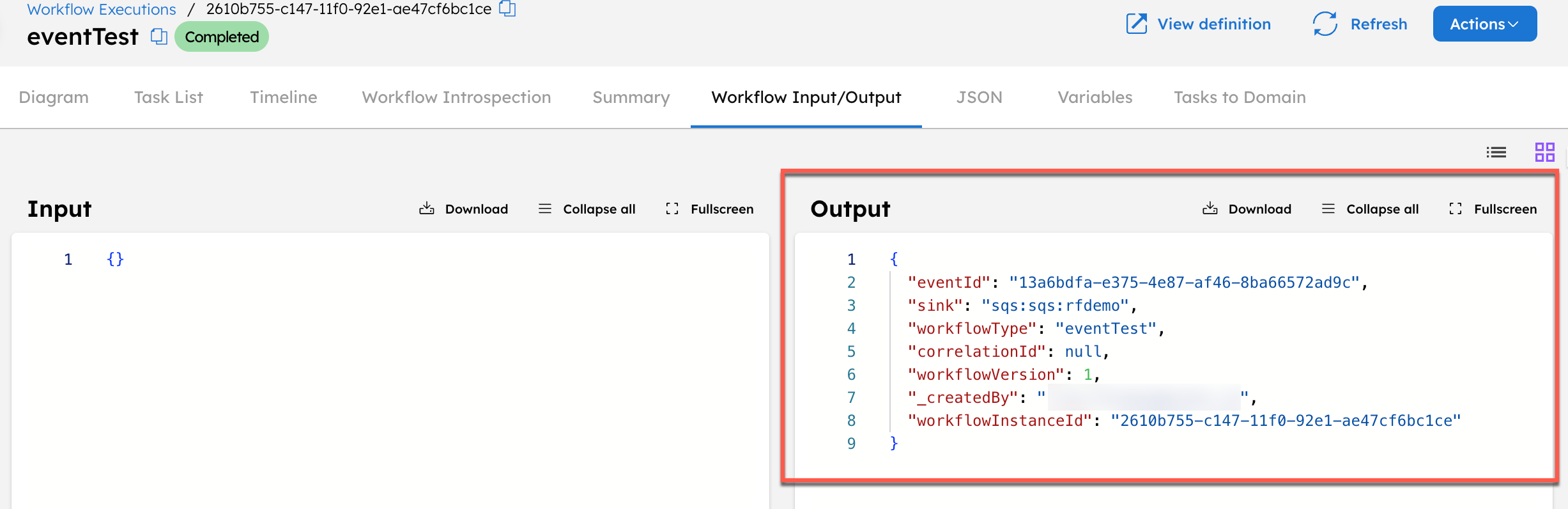

The task will produce the payload it sent as the output.

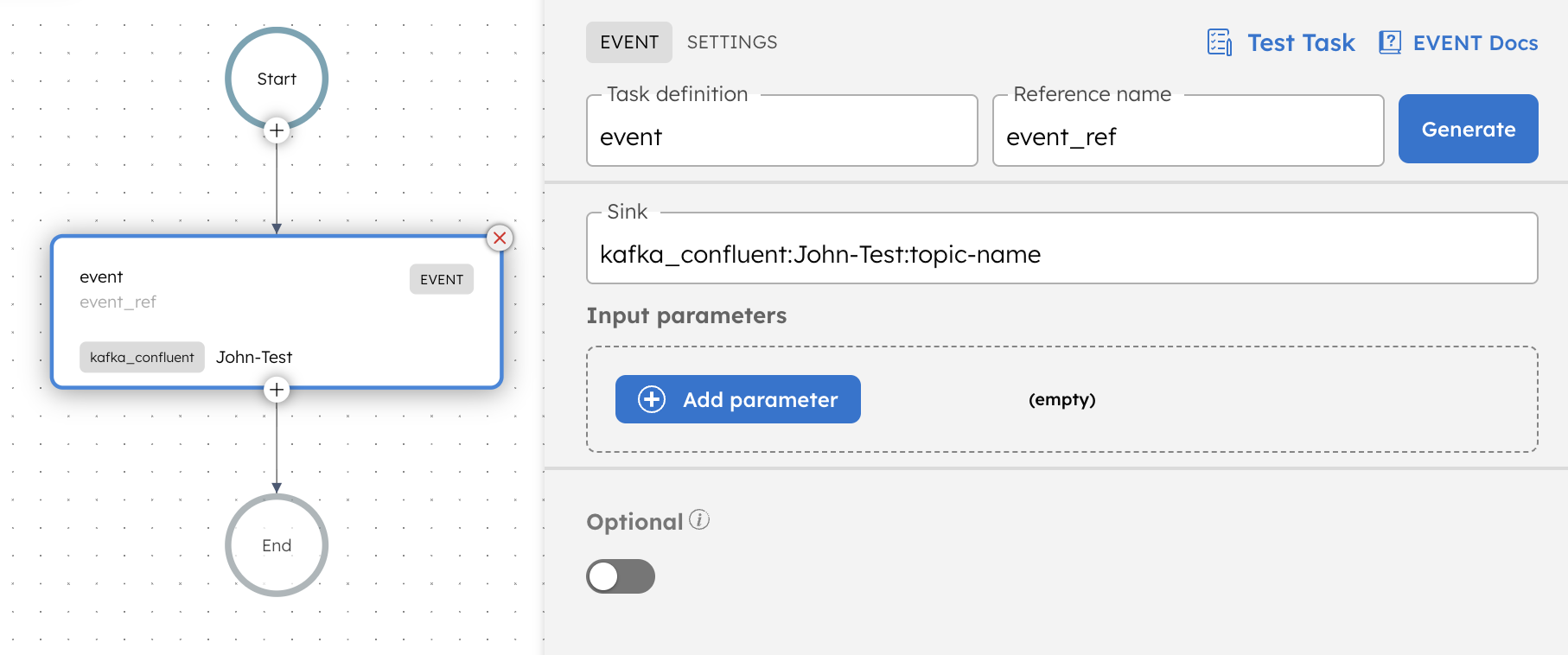

  1. Add task type EVENT.
  2. Select the sink type.
  3. Add the sink name.
  4. Add input parameters.

Adding event task

Tasks sending and receiving SQS messages in OSS

Amazon's Simple Queueing Service (SQS) is a handy way to send messages across systems. SQS support is included in Conductor but requires a few changes to the Conductor instance to work properly.

In this example, we will:

  • Configure Conductor for SQS messaging
  • Set up an SQS message queue at AWS
  • Build a workflow with an EVENT task that sends messages to our SQS queue.
  • Add an EVENT to Conductor that will complete a WAIT event in the same workflow.

In this way, this example follows the path of an SQS message from creation in Conductor to AWS and then back into Conductor.

Configuring Conductor for SQS

In your instance of Conductor, we will need to edit a few configurations:

  1. First edit /server/src/main/resources/ (around line 60). The default queue type may be set to SQS, but we must enable the queues and establish which AWS account is to be used:
# Default event queue type to listen on for wait task
conductor.event-queues.sqs.authorized-accounts={your AWS account number}
  1. Second, in annotations-processor/awssqs-event-queue/src/main/java/com/netflix/conductor/, add the following Bean:
AWSCredentialsProvider createAWSCredentialsProvider() {
return new DefaultAWSCredentialsProviderChain();

AWS Environmental Variables

You'll need to set 4 AWS environmental variables on the machine running Conductor. From your AWS account, you can copy three of the credentials:

export AWS_ACCESS_KEY_ID="{key_id}"
export AWS_SECRET_ACCESS_KEY="{access_key}"
export AWS_SESSION_TOKEN="{token_value}}"

You'll also want to set your AWS region

export  AWS_REGION = "{the region you are setting up the queue in}"

Creating an SQS Queue

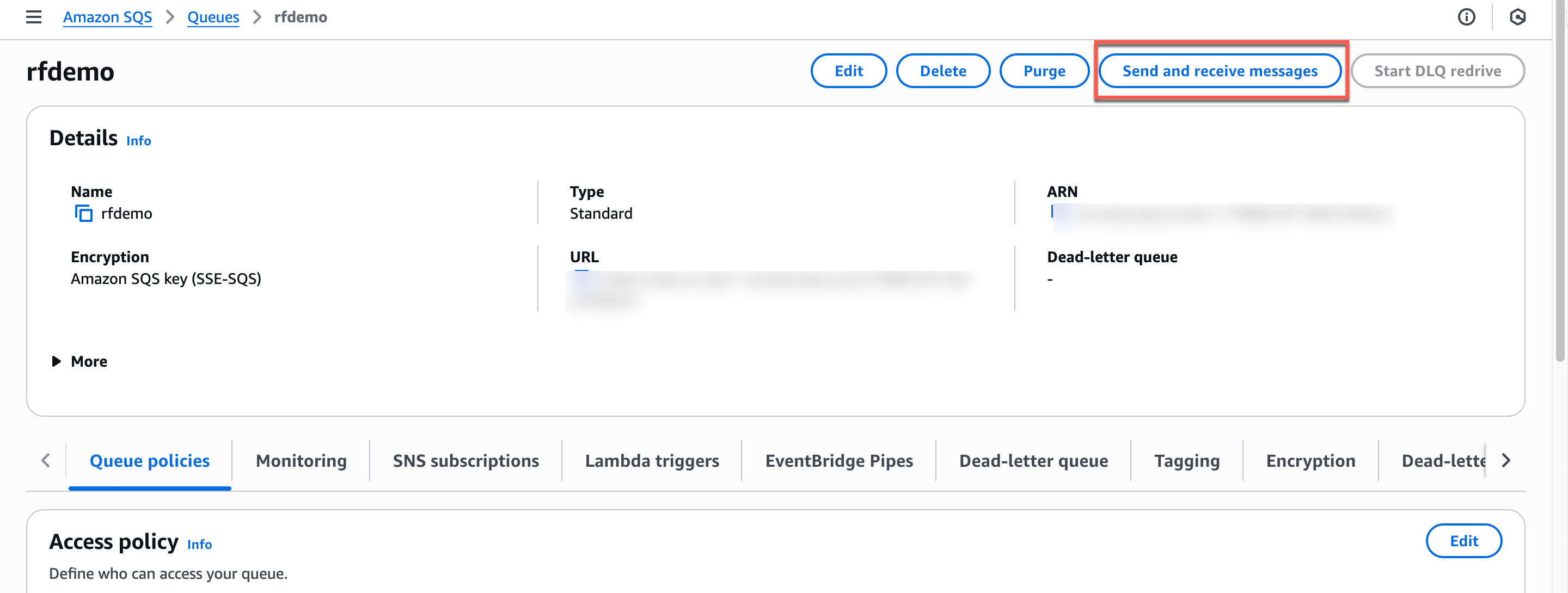

In your AWS account, open Amazon SQS (search for it in the search bar) and choose Create queue. Create a queue by entering a name and scrolling to the bottom to create queue. Your new queue will appear in the queue list in a minute or so.

filtered SQS queue list

Building your workflow

Now we will build a workflow to send and receive the SQS messages. You can find the JSON on the Orkes Playground.

Sample Event Workflow

This workflow has two forks:

  • On the left fork, there is just one task task_1. It is a WAIT task, waiting for a message from the SQS server.

    Note: for the SQS message to COMPLETE the task, we'll need to create a Conductor EVENT.

  • The right fork has two tasks. task_2 is also a WAIT task, but it just waits for 10s before completing and moving the workflow ahead. On the completion of task_2, the EVENT task send_sqs_messsage fires.

The reason for the delay in task_2 is to ensure that task_1 is initialized and waiting for the event to come in before the SQS message is sent out.

Here's the definition of send_sqs_message:

"name": "send_sqs_message",
"taskReferenceName": "send_sqs_message_ref",
"inputParameters": {},
"type": "EVENT",
"sink": "sqs:conductor_doug_testing"

When this fires, a message is sent to the conductor_doug_testing SQS queue at AWS. We could send data on the inputParameters, if desired.

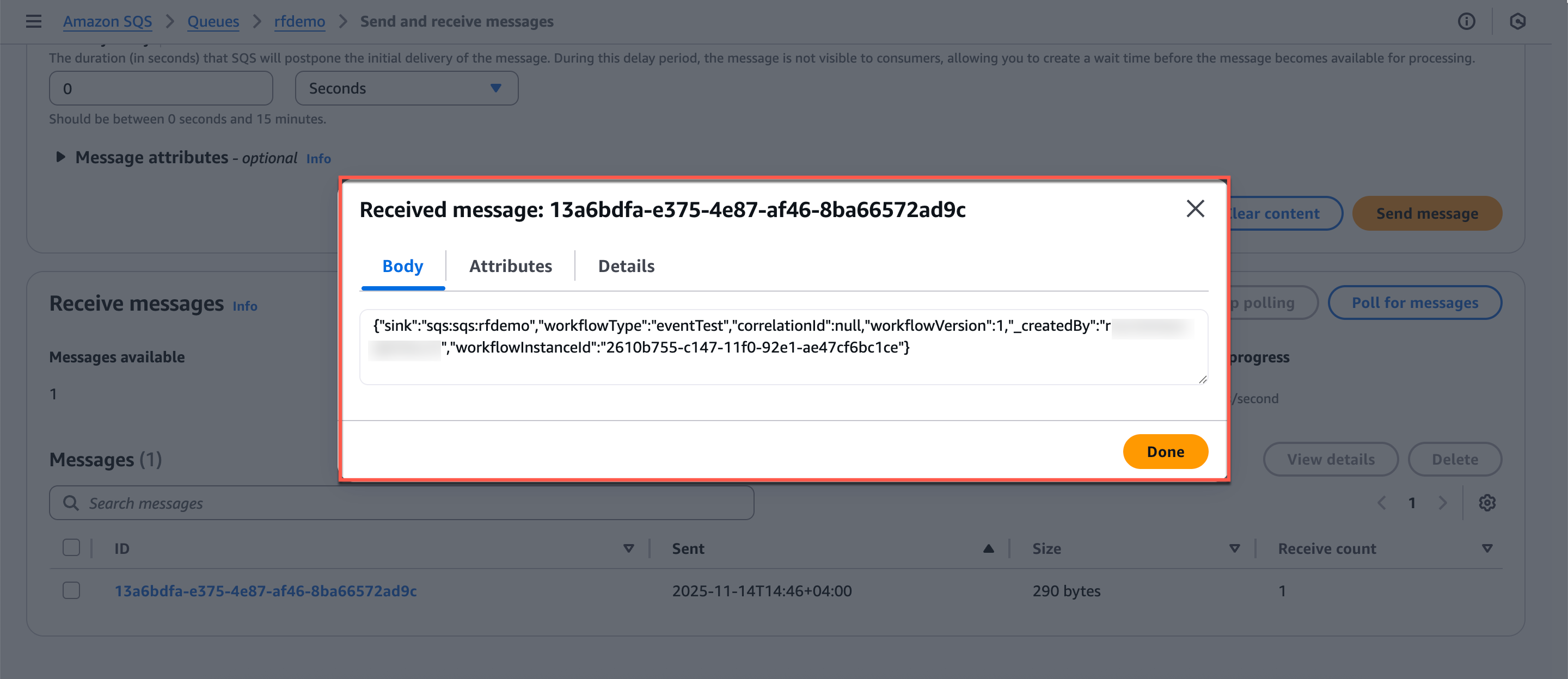

Here is the default payload sent to AWS in the SQS message

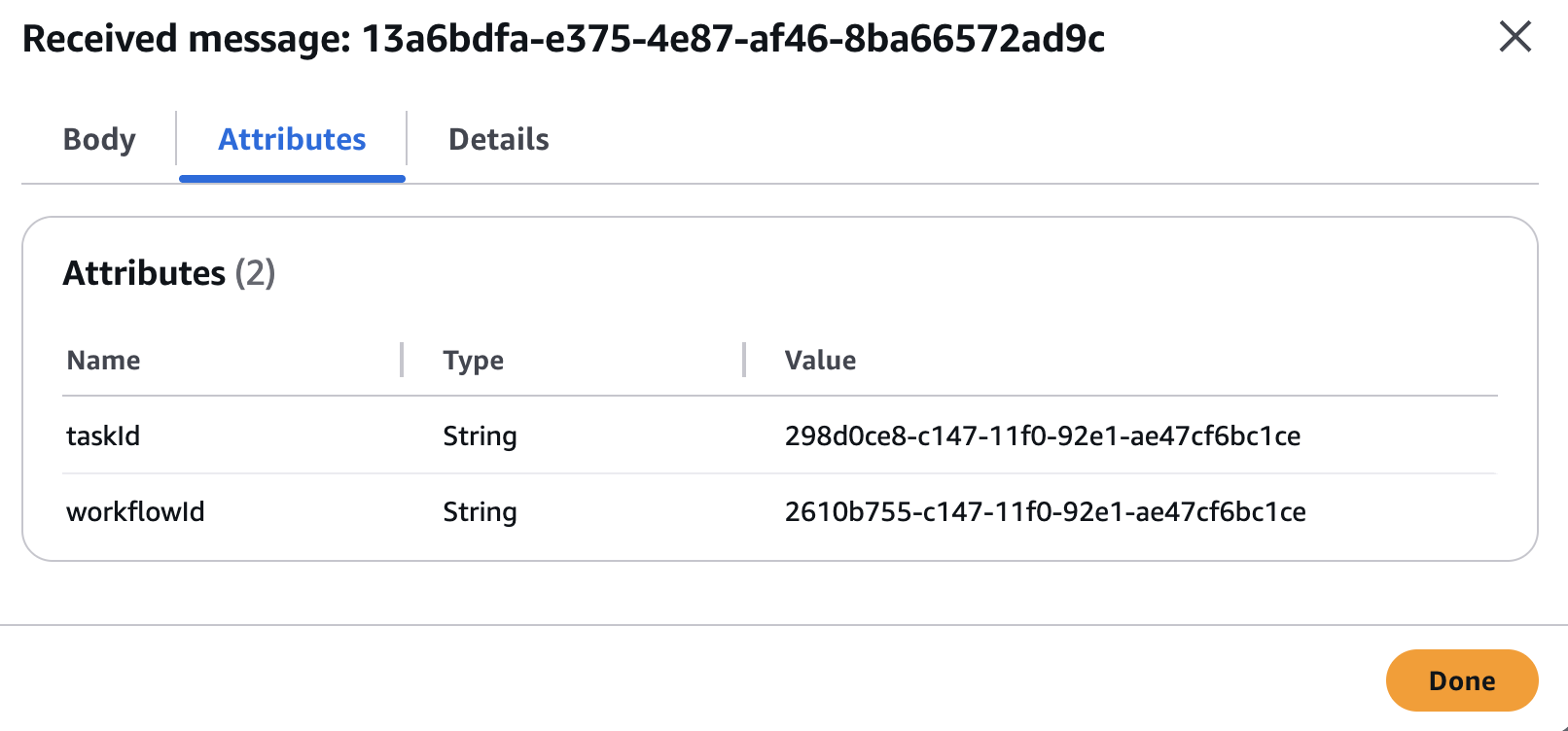

It is important to note that we have the workflow name and the workflowInstanceId for the specific invocation of the workflow.

We are almost there. If we run this workflow now - the right side of the FORK would complete, but there is no EVENT to tell Conductor how to complete task_1.

Adding an Event

To add an event, use the POST /api/event/ endpoint. Here's the body used in this example:

"name": "complete_task_event",
"event": "sqs:conductor_doug_testing",
"actions": [
"action": "complete_task",
"complete_task": {
"workflowId": "${workflowInstanceId}",
"taskRefName": "task_1_ref",
"input": {
"active": true

We have named the event complete_task_event and the event is a message from our SQS message queue sqs:conductor_doug_testing. The action is complete_task, and we want to complete task_ref_1 from the workflowInstanceId that is in the body of the SQS message.

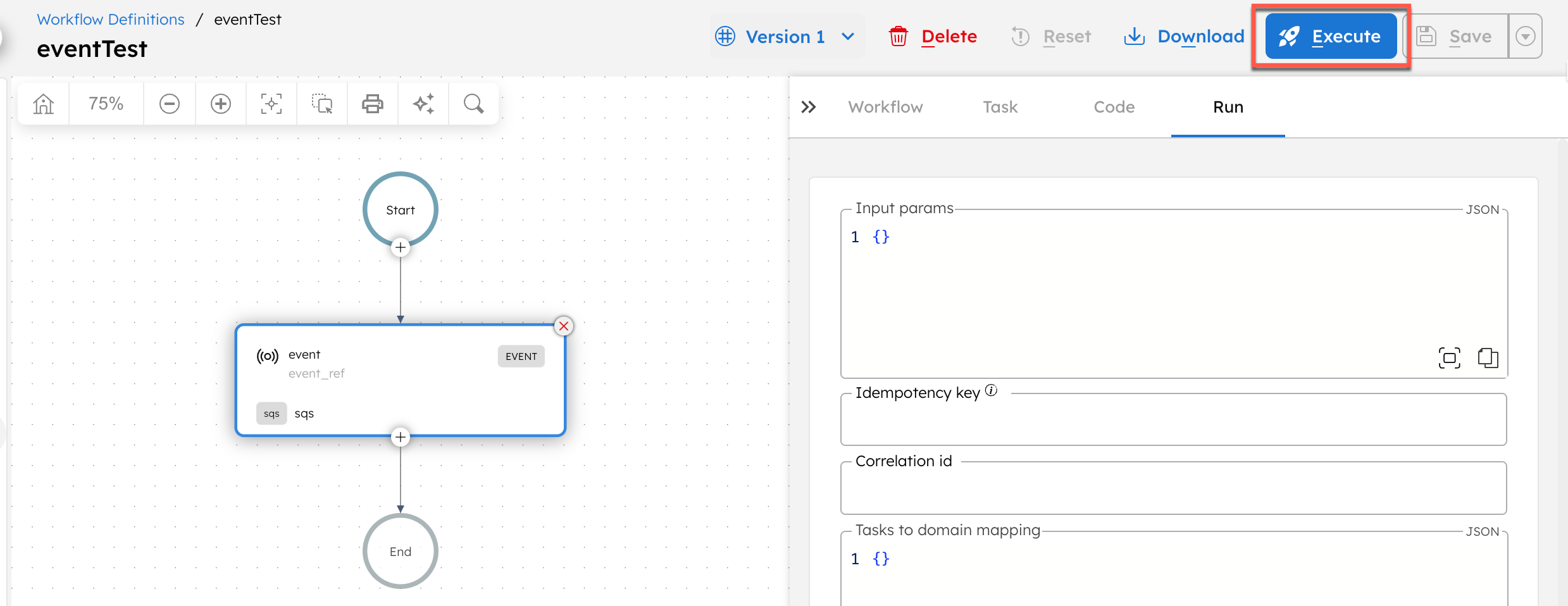

When we invoke the workflow:

Tasks In Progress

Both task_1 and task_2 are IN_PROGRESS.

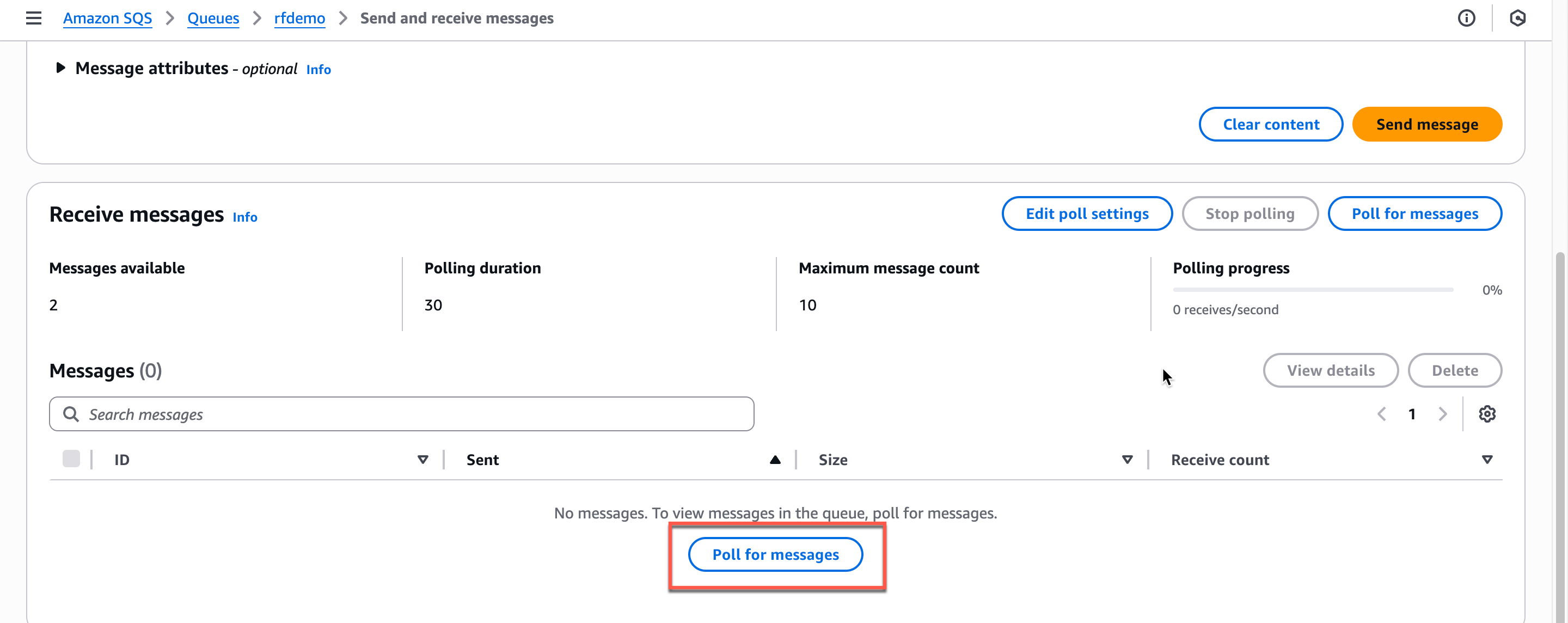

Once the WAIT poll task completes task_2, the SQS task fires and sends a message to AWS. You can poll for messages in your SQS queue (in your queue - click "send/receive messages" and there is a "poll for tasks" button) and see the message pass through:

SQS message arriving at AWS on it's way to task_1

This message triggers our EVENT, and the event COMPLETES task_1. The workflow gets completed now.

There we have it. We have configured Conductor to send and receive SQS messages to our AWS instance. We built an EVENT task to send the messages and created an event listener to receive events from AWS and perform actions in our workflow (In this case, sending a COMPLETED status to a WAIT task.)
