Dynamic Fork

The Dynamic Fork task is used to run tasks in parallel, with the forking behavior (such as the number of forks) determined at run-time. This contrasts with the Fork/Join task, where the forking behavior is defined at workflow creation. Like the Fork/Join task, the Dynamic Fork task is followed by a join operation that waits on the forked tasks to finish before moving to the next task. This Join task collects the outputs from each forked task.

Unlike the Fork/Join task, a Dynamic Fork task can only run one task per fork. A sub-workflow can be utilized if there is a need for multiple tasks per fork.

There are two ways to run the Dynamic Fork task:

• Each fork runs a different task—Use dynamicForkTasksParam and dynamicForkTasksInputParamName.
• All forks run the same task—Use forkTaskName and forkTaskInputs for any task type, or forkTaskWorkflow and forkTaskInputs for Sub Workflow tasks.

Task configuration

Configure these parameters for the Dynamic Fork task. The input payload for the forked tasks should correspond with its expected input. For example, if the forked tasks are HTTP tasks, its input should include the method and URI.

For the Fork task:

For different tasks

The dynamic fork executes each task in the array specified by dynamicForkTasksParam with its corresponding input specified by dynamicForkTasksInputParamName. The number of forks created at runtime depends on the array of tasks specified.

Parameter	Description	Required/ Optional
dynamicForkTasksParam	The input parameter key whose value will be used to schedule each task on a different fork. For example, "dynamicTasks", which will then be specified as an input parameter in the Dynamic Fork task.	Required.
inputParamters. dynamicTasks	An array of tasks that will run in parallel. Each array element is a task definition that corresponds to a separate fork branch. It can be passed as a variable.	Required.
dynamicForkTasksInputParamName	The input parameter key whose value will be used to pass the required input parameters for each forked task. For example, "dynamicTasksInput", which will then be specified as an input parameter in the Dynamic Fork task.	Required.
inputParameters. dynamicTasksInput	A map where the keys are the task reference names for each fork and the values are the input parameters that will be passed into its matching task. It can be passed as a variable.	Required.

For the same task (any task type)

The dynamic fork executes the task specified by forkTaskName for each element of forkTaskInputs. The number of forks created at runtime depends on the number of forkTaskInputs sent. Configure these parameters to execute any task type except Sub Workflow tasks.

Parameter	Description	Required/ Optional
inputParamters. forkTaskName	The name of the task that will be executed in each fork. It can be passed as a variable.	Required.
inputParameters. forkTaskInputs	An array of JSON inputs for each forked branch. The number of array elements determines the number of branches in the dynamic fork. It can be passed as a variable.	Required.

For the same task (sub-workflows)

The dynamic fork executes the workflow specified by forkTaskWorkflow and forkTaskWorkflowVersion for each element of forkTaskInputs. The number of forks created at runtime depends on the number of forkTaskInputs sent. Configure these parameters to execute a Sub Workflow task.

Parameter	Description	Required/ Optional
inputParamters. forkTaskWorkflow	The name of the workflow that will be executed in each fork. It can be passed as a variable.	Required.
inputParamters. forkTaskWorkflowVersion	The version of the workflow to be executed. If unspecified, the latest version will be used.	Required.
inputParameters. forkTaskInputs	An array of JSON inputs for each forked branch. The number of array elements determines the number of branches in the dynamic fork. It can be passed as a variable.	Required.

The Join task will run after the forked tasks. Configure the Join task as well to complete the fork-join operations.

For the Join task:

Parameter	Description	Required/ Optional
joinOn	A list of task reference names that the Join task will wait for completion before proceeding with the next task.	Required.
expression	The join script, which controls how the Join task completes if specified.	Optional.

Task definition

This is the JSON schema for a Dynamic Fork task definition.

Run different tasks

// JSON schema for the Dynamic Fork task
{
  "name": "fork_join_dynamic",
  "taskReferenceName": "fork_join_dynamic_ref",
  "inputParameters": {
    "dynamicTasks": [ // name of the tasks to execute
      {
        "name": "http",
        "taskReferenceName": "http_ref",
        "type": "HTTP",
        "inputParameters": {}
      },
      { // another task definition }

    ],
    "dynamicTasksInput": { // inputs for the tasks
      "taskReferenceName" : {
        "key": "value",
        "key": "value"
      },
      "anotherTaskReferenceName" : {
        "key": "value",
        "key": "value"
      }
    }
  },
  "type": "FORK_JOIN_DYNAMIC",
  "dynamicForkTasksParam": "dynamicTasks", // input parameter key that will hold the task names to execute
  "dynamicForkTasksInputParamName": "dynamicTasksInput" // input parameter key that will hold the input parameters for each task
}


// JSON schema for the Join task
{
  "name": "join",
  "taskReferenceName": "join_ref",
  "inputParameters": {},
  "type": "JOIN",
  "joinOn": []
}

Run the same task (any task type)

// JSON schema for the Dynamic Fork task
{
  "name": "fork_join_dynamic",
  "taskReferenceName": "fork_join_dynamic_ref",
  "inputParameters": {
    "forkTaskName": "",
    "forkTaskInputs": []
  },
  "type": "FORK_JOIN_DYNAMIC"
}

// JSON schema for the Join task
{
  "name": "join",
  "taskReferenceName": "join_ref",
  "inputParameters": {},
  "type": "JOIN",
  "joinOn": []
}

Run the same task (sub-workflows)

// JSON schema for the Dynamic Fork task
{
  "name": "fork_join_dynamic",
  "taskReferenceName": "fork_join_dynamic_ref",
  "inputParameters": {
    "forkTaskWorkflow": "",
    "forkTaskWorkflowVersion": "",
    "forkTaskInputs": []
  },
  "type": "FORK_JOIN_DYNAMIC"
}

// JSON schema for the Join task
{
  "name": "join",
  "taskReferenceName": "join_ref",
  "inputParameters": {},
  "type": "JOIN",
  "joinOn": []
}

note

forkTaskName and forkTaskInputs will take precedence even if dynamicForkTasksParam and dynamicForkTasksInputParamName are present in the task definition.

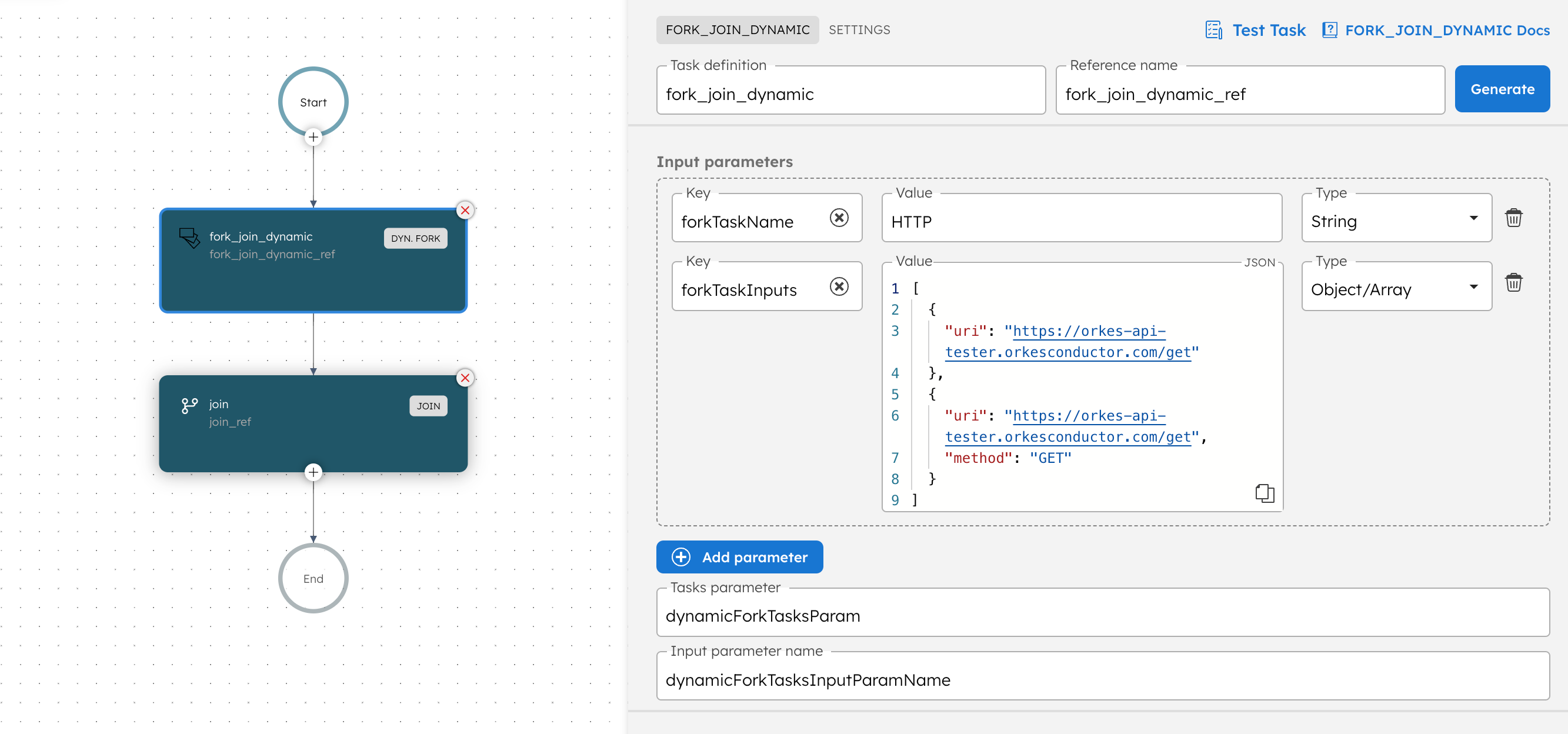

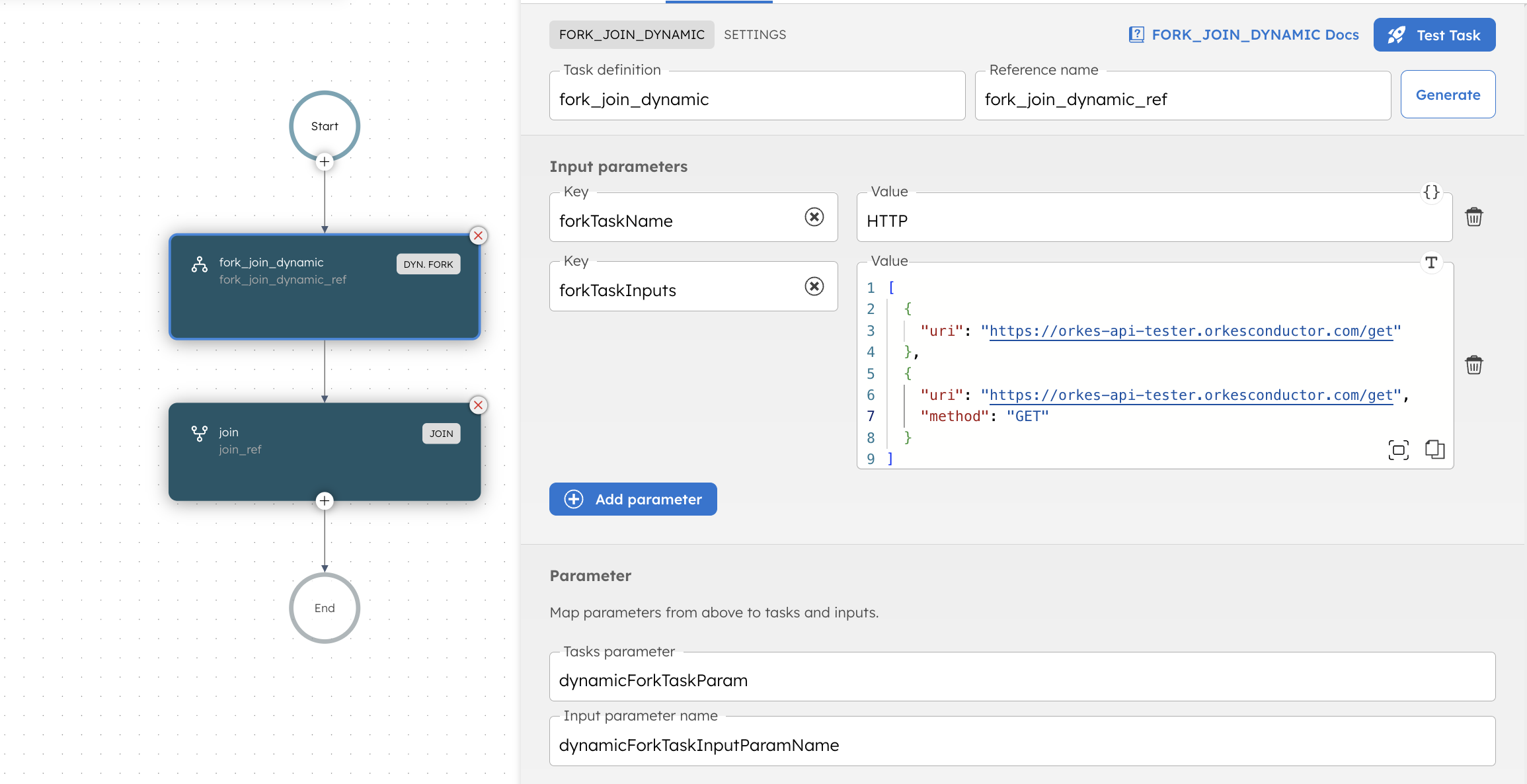

Adding a Dynamic Fork task in UI

To add a Dynamic Fork task:

For different tasks

1. In your workflow, select the (+) icon and add a Dynamic Fork task.
2. In Input parameters, set the parameter Type for dynamicTasks and dynamicTasksInput as Object/Array.
3. Configure the dynamicTask parameter as an array of task definitions.
4. Configure the dynamicTasksInput parameter as a map of input parameters for each task.
5. Select the Join task and configure its settings to complete the fork/join operations.

For the same task

1. In your workflow, select the (+) icon and add a Dynamic Fork task.
2. In Input parameters, remove all current parameters and add the following parameters and its values:
   • forkTaskWorkflow, forkTaskWorkflowVersion, and forkTaskInputs for Sub Workflow tasks.
   • forkTaskName and forkTaskInputs for all other task types.
3. Select the Join task and configure its settings to complete the fork/join operations.

Examples

Here are some examples for using the Dynamic Fork task.

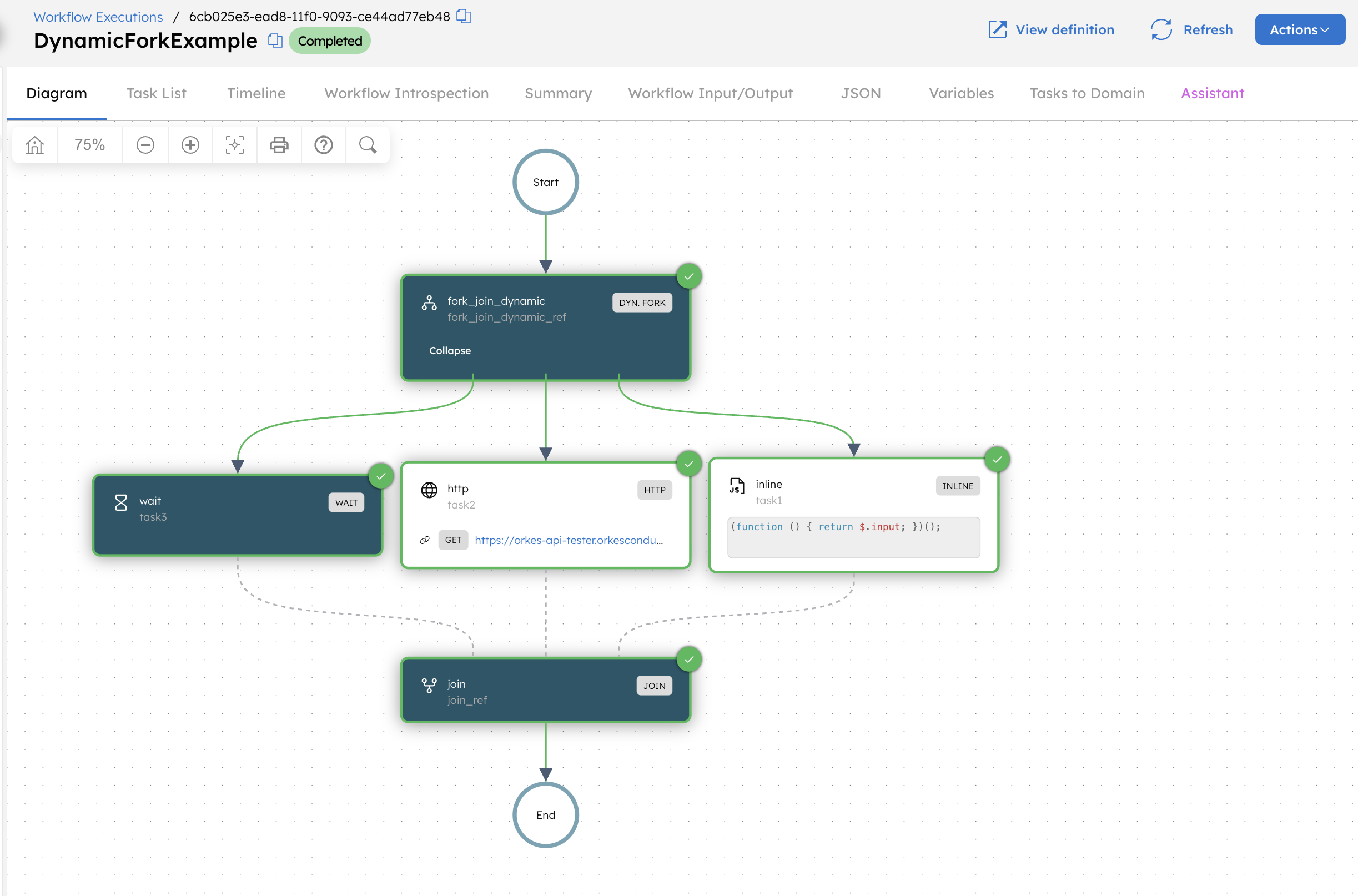

Running different tasks

To run a different task per fork in a dynamic fork, you must use dynamicForkTasksParam and dynamicForkTasksInputParamName. Here is an example workflow of a Dynamic Fork task running different tasks.

// workflow definition

{
  "name": "DynamicForkExample",
  "description": "This workflow runs different tasks in a dynamic fork.",
  "version": 1,
  "tasks": [
    {
      "name": "fork_join_dynamic",
      "taskReferenceName": "fork_join_dynamic_ref",
      "inputParameters": {
        "dynamicTasks": [
          {
            "name": "inline",
            "taskReferenceName": "task1",
            "type": "INLINE",
            "inputParameters": {
              "expression": "(function () {\n  return $.input;\n})();",
              "evaluatorType": "graaljs"
            }
          },
          {
            "name": "http",
            "taskReferenceName": "task2",
            "type": "HTTP",
            "inputParameters": {
              "method": "GET",
              "connectionTimeOut": 3000,
              "readTimeOut": "3000",
              "accept": "application/json",
              "contentType": "application/json",
              "encode": true
            }
          },
          {
            "name": "x_test_worker_0",
            "taskReferenceName": "simple_ref",
            "type": "SIMPLE"
          }
        ],
        "dynamicTasksInput": {
          "task1": {
            "input": "one"
          },
          "task2": {
            "uri": "https://orkes-api-tester.orkesconductor.com/api"
          },
          "task3": {
            "input": {
              "someKey": "someValue"
            }
          }
        }
      },
      "type": "FORK_JOIN_DYNAMIC",
      "dynamicForkTasksParam": "dynamicTasks",
      "dynamicForkTasksInputParamName": "dynamicTasksInput"
    },
    {
      "name": "join",
      "taskReferenceName": "join_ref",
      "inputParameters": {},
      "type": "JOIN",
      "joinOn": []
    }
  ],
  "inputParameters": [],
  "outputParameters": {},
  "schemaVersion": 2
}

Running the same task — Simple task

In this example workflow, the Dynamic Fork task runs a worker task called update_fruit_list_task in parallel. The task input takes from the workflow input, which contains the number of new fruits.

// workflow definition

{
  "name": "dynamic_workflow_array_simple",
  "description": "Update fruit list",
  "version": 1,
  "tasks": [
    {
      "name": "fork_join_dynamic",
      "taskReferenceName": "fork_join_dynamic_ref",
      "inputParameters": {
        "forkTaskName": "update_fruit_list_task",
        "forkTaskInputs": "${workflow.input.fruits}"
      },
      "type": "FORK_JOIN_DYNAMIC"
    },
    {
      "name": "join",
      "taskReferenceName": "join_ref",
      "inputParameters": {},
      "type": "JOIN",
      "joinOn": []
    }
  ],
  "inputParameters": [
    "fruits"
  ],
  "outputParameters": {},
  "schemaVersion": 2
}

Here, forkTaskInputs is a variable array input that determines the number of forks. At run-time, if the input payload for “fruits” contains three JSON objects, there will be three forks created:

// workflow input payload

{
  "fruits": [
    {
      "inventoryNo": 5,
      "fruit": "apple"
    },
    {
      "inventoryNo": 20,
      "fruit": "orange"
    },
    {
      "inventoryNo": 3,
      "fruit": "kiwi"
    }
  ]
}

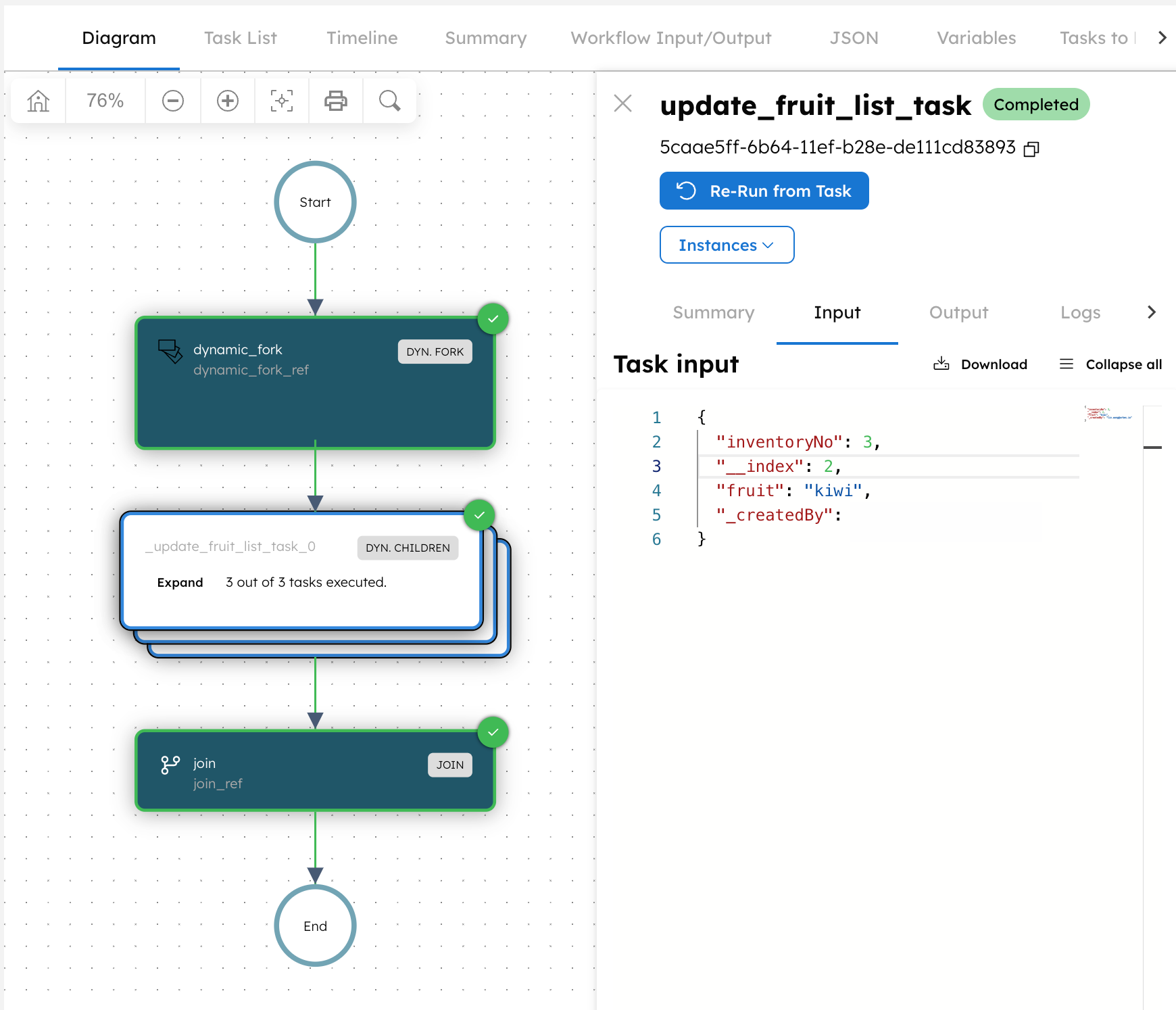

During execution, Conductor will insert an additional parameter called index into each JSON object, which is used to represent its array index.

// one input instance for the Dynamic Fork task at run-time

{
  "fruit" : "kiwi",
  "inventoryNo" : 3,
  "__index": 2 // index of the element in the source array
}

If simple values are used in forkTaskInputs, such as "fruits" = ["apple", "orange", "kiwi"], Conductor will set each array element in a parameter called input, like so:

// one input instance for the Dynamic Fork task at run-time

{
  "input" : "apple", // input value
  "__index" : 0 // index of the element in the source array
}

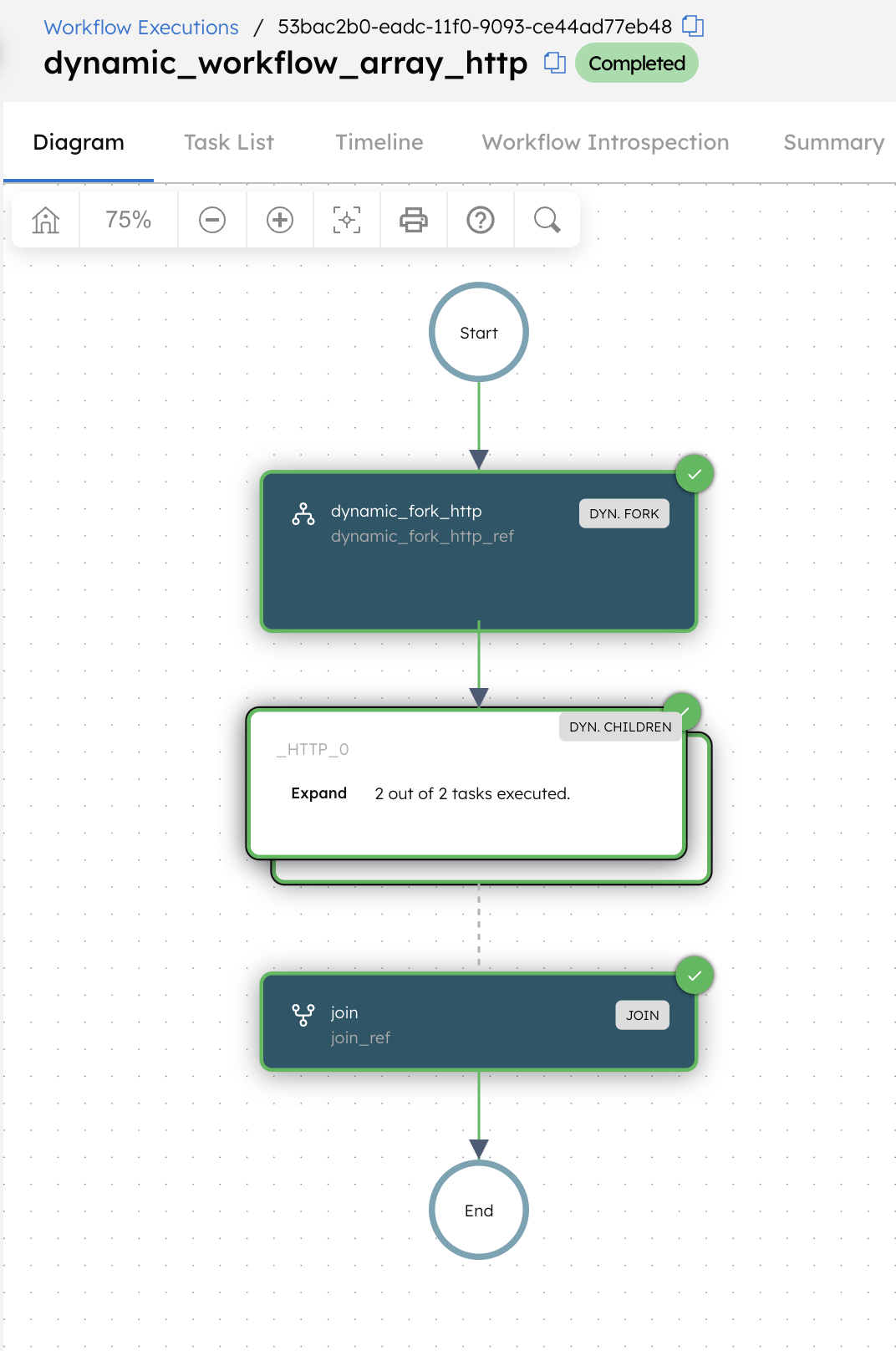

Running the same task — HTTP task

In this example, the dynamic fork runs HTTP tasks in parallel. The provided input in forkTaskInputs contains the typical payload expected in a HTTP task.

// workflow definition

{
  "name": "dynamic_workflow_array_http",
  "description": "Dynamic workflow array - run HTTP tasks",
  "tasks": [
    {
      "name": "dynamic_workflow_array_http",
      "taskReferenceName": "dynamic_workflow_array_http_ref",
      "inputParameters": {
        "forkTaskName": "HTTP",
        "forkTaskInputs": [
          {
            "uri" : "https://orkes-api-tester.orkesconductor.com/get"
          },
          {
            "uri" : "https://orkes-api-tester.orkesconductor.com/get",
            "method" : "GET"
          }
        ]
      },
      "type": "FORK_JOIN_DYNAMIC"
    },
    {
      "name": "dynamic_workflow_array_http_join",
      "taskReferenceName": "dynamic_workflow_array_http_join_ref",
      "type": "JOIN"
    }
  ]
}

tip

The parameter method has a default value of GET and need not be specified if the HTTP call is GET.

Running the same task — Sub Workflow task

In this example, the dynamic fork runs Sub Workflow tasks in parallel.

// workflow definition

{
  "name": "dynamic_workflow_array_sub_workflow",
  "description": "Dynamic workflow array - run sub workflow tasks",
  "tasks": [
    {
      "name": "dynamic_workflow_array_sub_workflow",
      "taskReferenceName": "dynamic_workflow_array_sub_workflow_ref",
      "inputParameters": {
        "forkTaskWorkflow": "extract_user",
        "forkTaskWorkflowVersion": "1",
        "forkTaskInputs": [
          {
            "input" : "value1"
          },
          {
            "input" : "value2"
          }
        ]
      },
      "type": "FORK_JOIN_DYNAMIC"
    },
    {
      "name": "dynamic_workflow_array_sub_workflow_join",
      "taskReferenceName": "dynamic_workflow_array_sub_workflow_join_ref",
      "type": "JOIN"
    }
  ]
}
