Terminate

The Terminate task is used to terminate the current workflow with a specified termination status and reason, and optionally modify the workflow output.

It can act as a return statement when you want to end a workflow without executing subsequent tasks. For example, you can execute certain tasks only when a condition is met and terminate the workflow otherwise.

Task parameters

Configure these parameters for the Terminate task.

Parameter	Description	Required/ Optional
inputParameters. terminationStatus	The termination status for the current workflow. Supported values: COMPLETED FAILED TERMINATED	Required.
inputParameters. terminationReason	The reason for terminating the current workflow, which will provide the context of the termination. It can be passed as a dynamic variable.	Optional.
inputParameters. workflowOutput	A map of the expected workflow output on termination. It can contain a string, number, boolean, null, or object/array.	Optional.

Task configuration

This is the task configuration for a Terminate task.

{
  "name": "terminate",
  "taskReferenceName": "terminate_ref",
    "inputParameters": {
       "terminationStatus": "TERMINATED",
       "workflowOutput": {
         "someKey": "someValue"
       },
       "terminationReason": "Terminated due to xxxxxxxx."
     },
  "type": "TERMINATE"
}

Task output

The Terminate task will return the following parameters.

Parameter	Description
output	A map containing the workflow output defined in inputParameters.workflowOutput. If workflowOutput is not set in the Terminate task definition, the output will be an empty object.

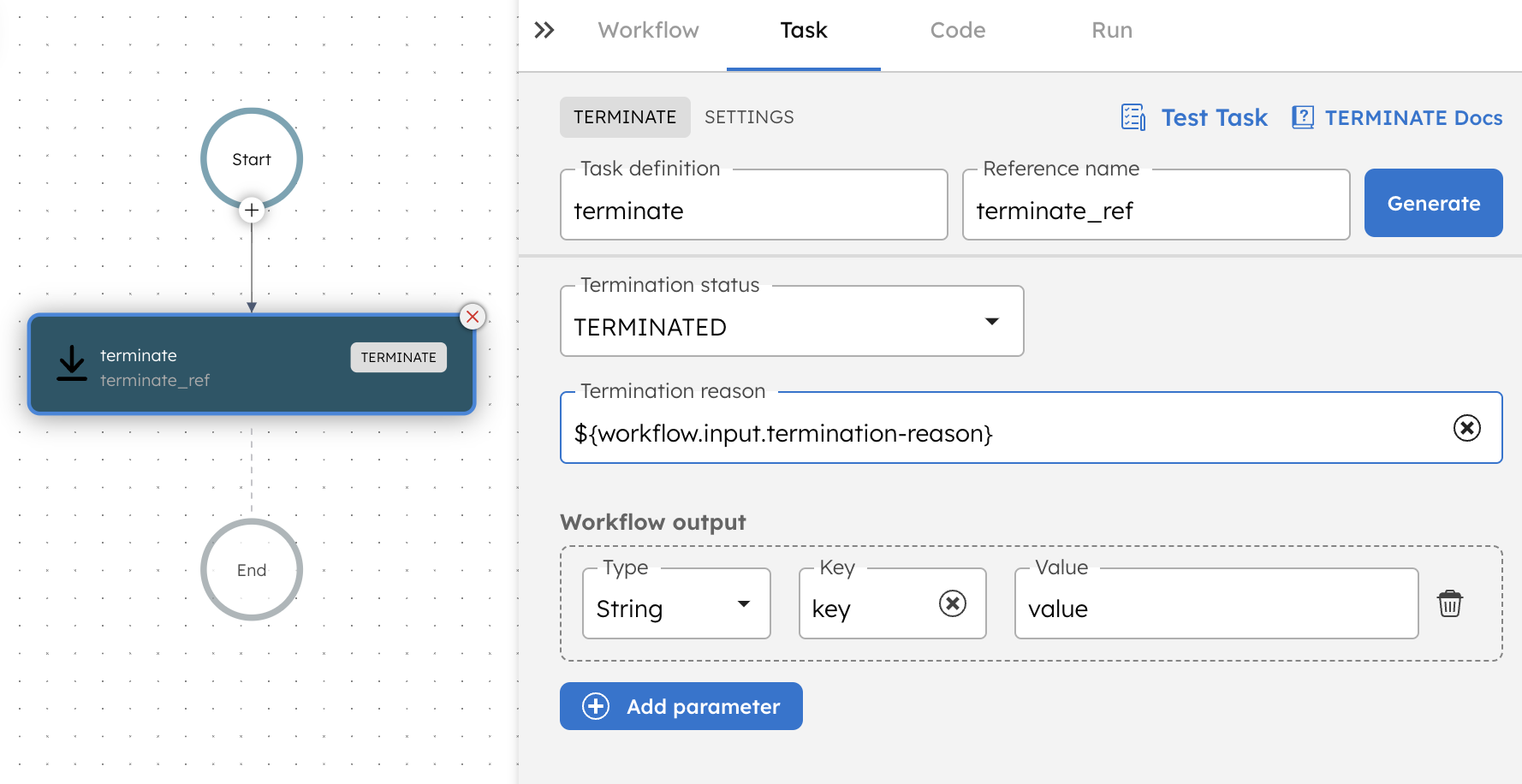

Adding a Terminate task in UI

To add a Terminate task:

1. In your workflow, select the (+) icon and add a Terminate task.
2. Select the Termination status.
3. Enter the Termination reason.
4. (Optional) Add the Workflow output.

Examples

Here are some examples for using the Terminate task.

Terminate a workflow for unsupported input

In this example, a shipping workflow selects a provider based on runtime input. If the input does not match a supported provider, the workflow terminates immediately using a Terminate task and returns an error in the workflow output.

To create a workflow:

1. Go to Definitions > Workflow, from the left navigation menu on your Conductor cluster.
2. Select + Define workflow.
3. In the Code tab, paste the following workflow definition:

{
 "name": "shipping-workflow",
 "description": "Terminate workflow when shipping provider is unsupported",
 "version": 1,
 "tasks": [
   {
     "name": "validate_provider",
     "taskReferenceName": "validate_provider_ref",
     "inputParameters": {
       "shippingProvider": "${workflow.input.shippingProvider}"
     },
     "type": "SWITCH",
     "decisionCases": {
       "fedex": [
         {
           "name": "process_fedex",
           "taskReferenceName": "process_fedex_ref",
           "inputParameters": {},
           "type": "SIMPLE"
         }
       ],
       "dhl": [
         {
           "name": "process_dhl",
           "taskReferenceName": "process_dhl_ref",
           "inputParameters": {},
           "type": "SIMPLE"
         }
       ]
     },
     "defaultCase": [
       {
         "name": "terminate_workflow",
         "taskReferenceName": "terminate_workflow_ref",
         "inputParameters": {
           "terminationStatus": "FAILED",
           "terminationReason": "Unsupported shipping provider",
           "workflowOutput": {
             "error": "The specified shipping provider is not supported."
           }
         },
         "type": "TERMINATE"
       }
     ],
     "evaluatorType": "value-param",
     "expression": "shippingProvider"
   }
 ],
 "inputParameters": [
   "shippingProvider"
 ],
 "schemaVersion": 2
}

4. Select Save > Confirm.

This workflow supports only two shipping providers: fedex and dhl. If any other value is provided at runtime, the Switch task executes the default case and terminates the workflow using the Terminate task.

To run the workflow:

1. Go to the Run tab, and enter the Input params. For example:

{
  "shippingProvider": "ups"
}

2. Select Execute.

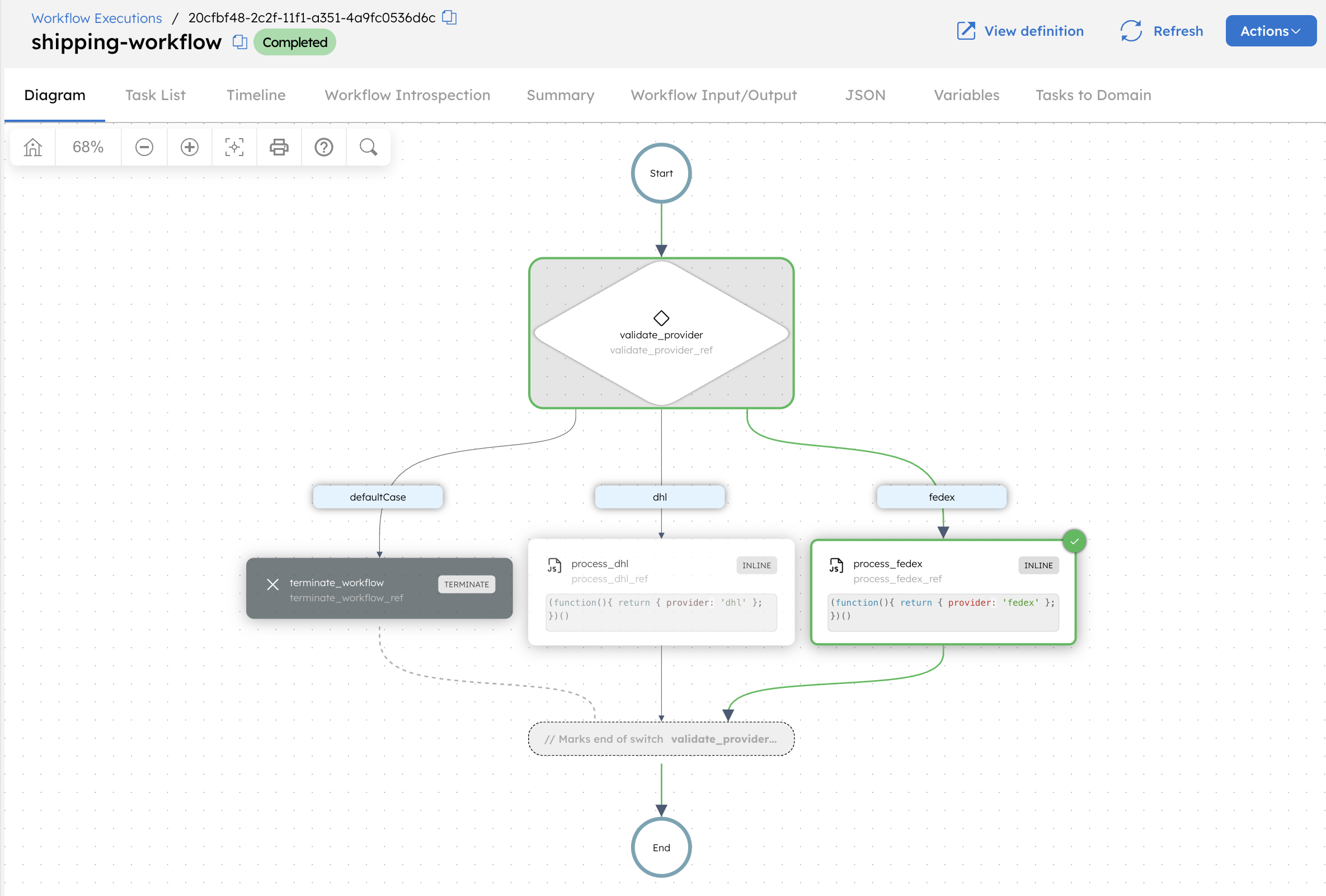

This executes the workflow, and because ups is not a supported value, the workflow is terminated using the Terminate task.
