Anthropic Claude Integration with Orkes Conductor

To use system AI tasks in Orkes Conductor, you must integrate your Conductor cluster with the necessary AI/LLM providers. This guide explains how to integrate Anthropic Claude with Orkes Conductor. Here’s an overview:

1. Get the required credentials from Anthropic Claude.
2. Configure a new Anthropic Claude integration in Orkes Conductor.
3. Add models to the integration.
4. Set access limits to the AI model to govern which applications or groups can use them.

Step 1: Get the Anthropic Claude credentials

To integrate Anthropic Claude with Orkes Conductor, retrieve the API key and endpoint from the Anthropic Console.

To get the API key:

1. Sign in to the Anthropic Console.

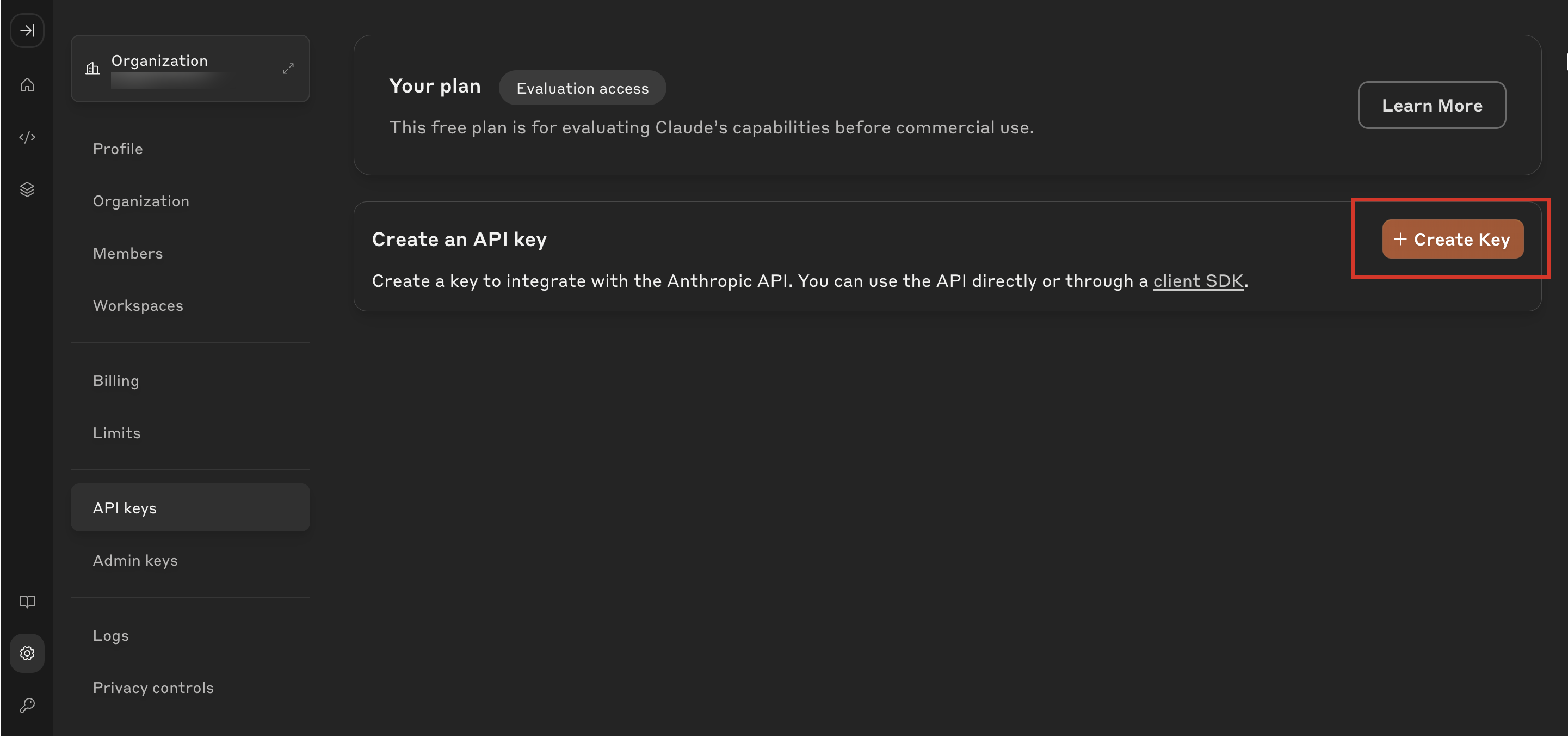

2. Go to API keys from the left menu.
3. Select + Create Key.

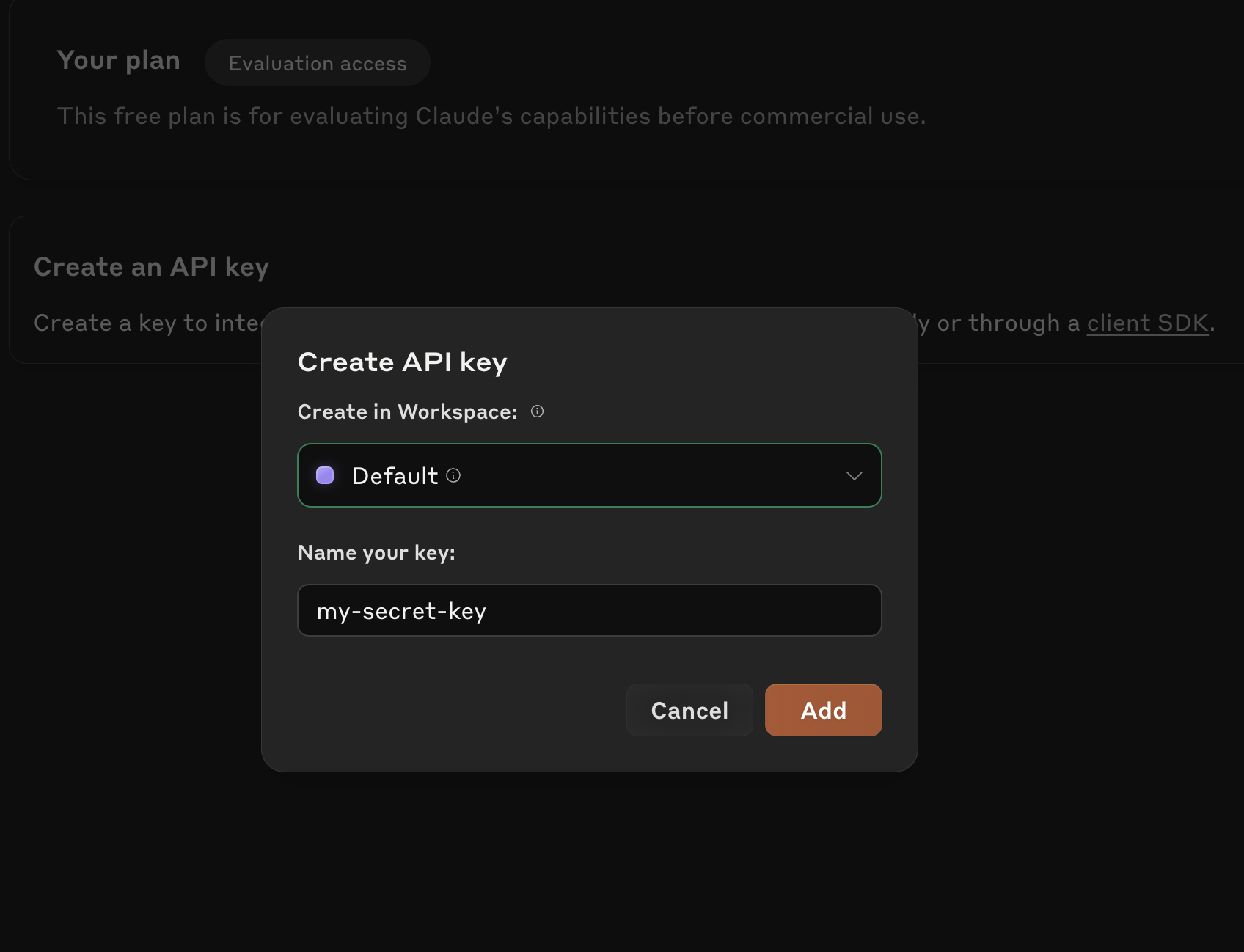

4. In Create in Workspace, select your workspace and Name your key.

5. Select Add.
6. Copy and store the generated key.

The default API endpoint for Anthropic Claude is https://api.anthropic.com/v1. Use this as the API endpoint when configuring the integration.

Step 2: Add an integration for Anthropic Claude

After obtaining the credentials, add an Anthropic Claude integration to your Conductor cluster.

To create an Anthropic Claude integration:

1. Go to Integrations from the left navigation menu on your Conductor cluster.
2. Select + New integration.
3. In the AI/LLM section, choose Anthropic Claude.

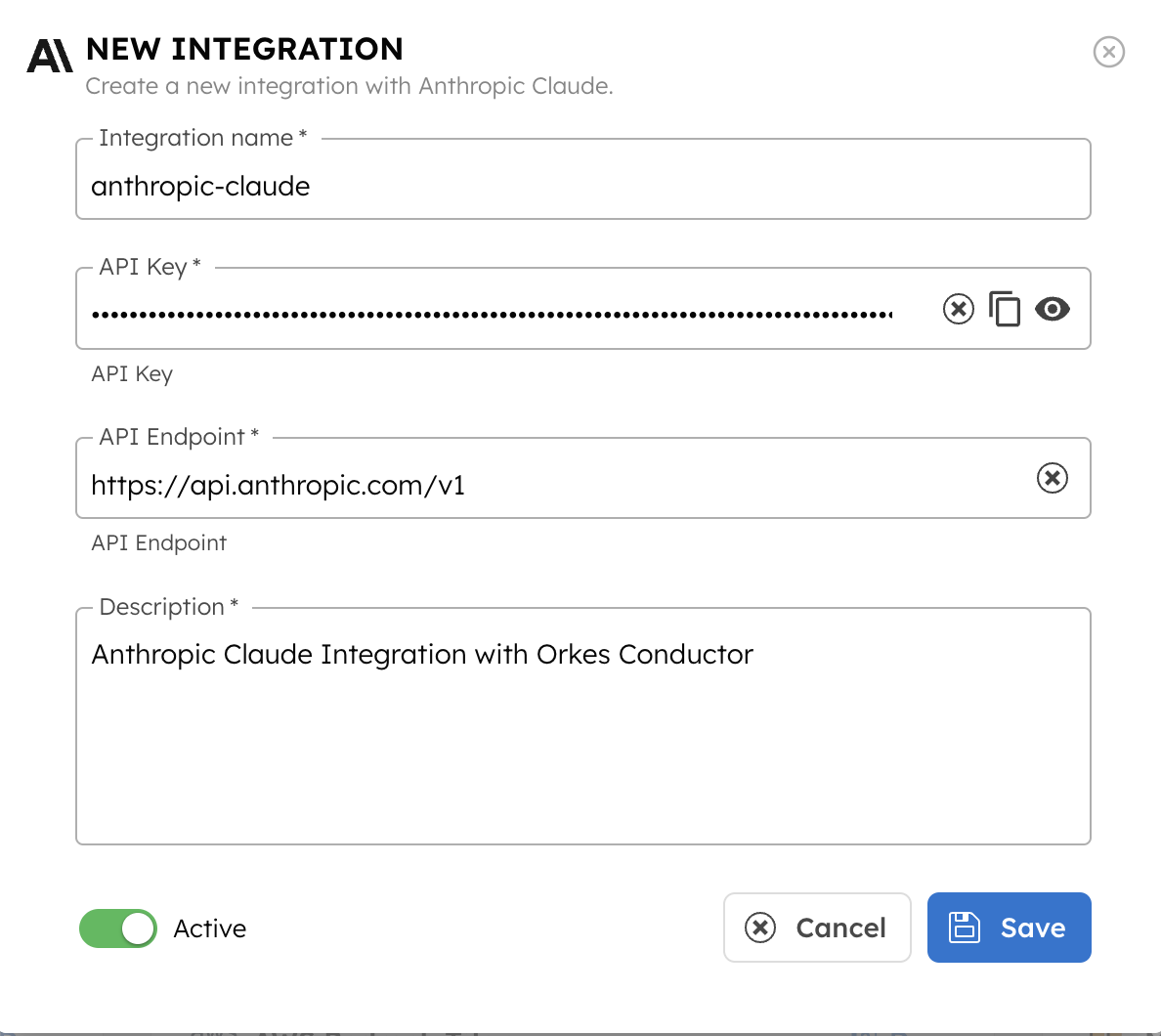

4. Select + Add and enter the following parameters:

Parameters	Description
Integration name	A name for the integration.
API Key	The API key copied previously from the Anthropic console.
API Endpoint	Use the default API endpoint for Anthropic Claude, which is https://api.anthropic.com/v1.
Description	A description of the integration.

5. (Optional) Toggle the Active button off if you don’t want to activate the integration instantly.
6. Select Save.

Step 3: Add Anthropic Claude models

Once you’ve integrated Anthropic Claude, the next step is to configure specific models.

Anthropic Claude has different models, such as Claude 3 Opus, Claude 3 Sonnet, Claude 3 Haiku, and more, each designed for various use cases, such as text completion and embedding generation. Choose the model that best fits your use case.

To add a model to the Anthropic Claude integration:

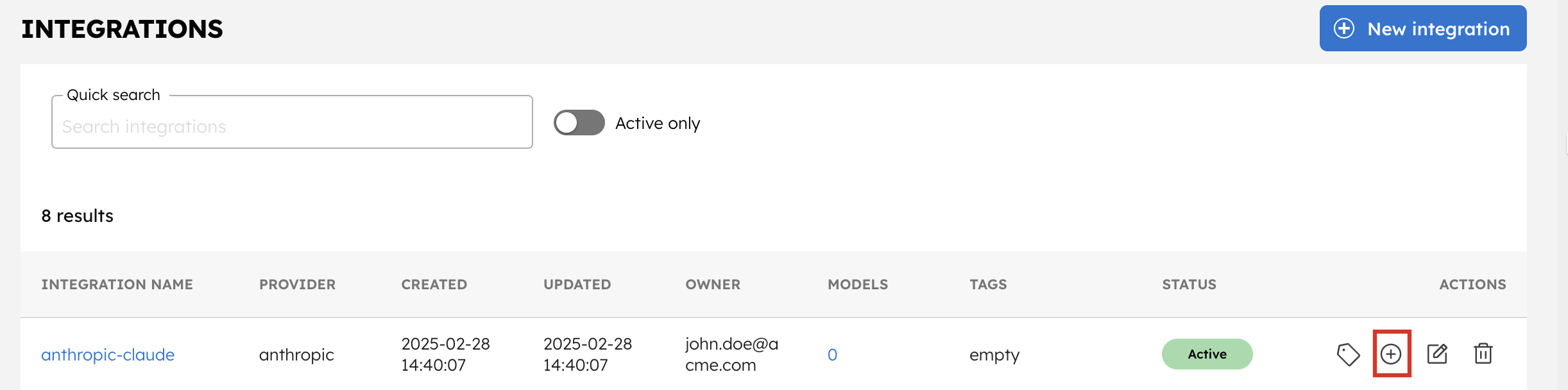

1. Go to the Integrations page and select the + button next to the integration created.

2. Select + New model.

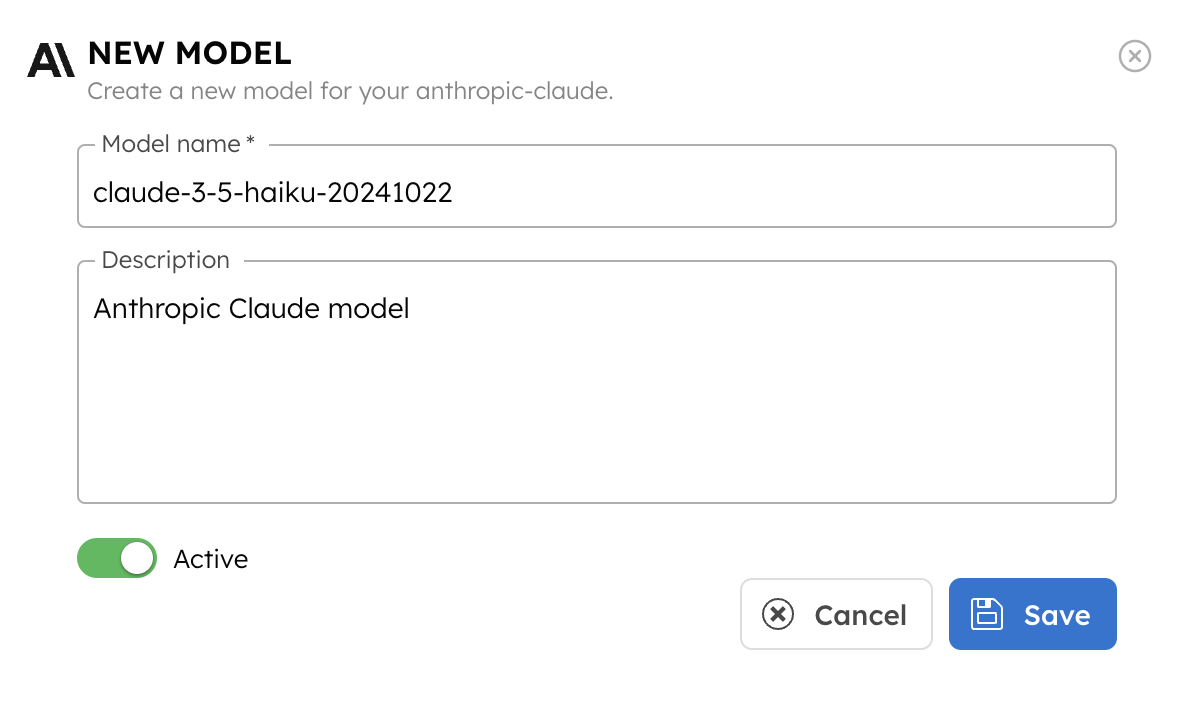

3. Enter the Model name and a Description. Get the complete list of Anthropic Claude models.

4. (Optional) Toggle the Active button off if you don’t want to activate the model instantly.
5. Select Save.

This saves the model for future use in AI tasks within Orkes Conductor.

Step 4: Set access limits to integration

Once the integration is configured, set access controls to manage which applications or groups can use the models.

To provide access to an application or group:

1. Go to Access Control > Applications or Groups from the left navigation menu on your Conductor cluster.
2. Create a new group/application or select an existing one.
3. In the Permissions section, select + Add Permission.

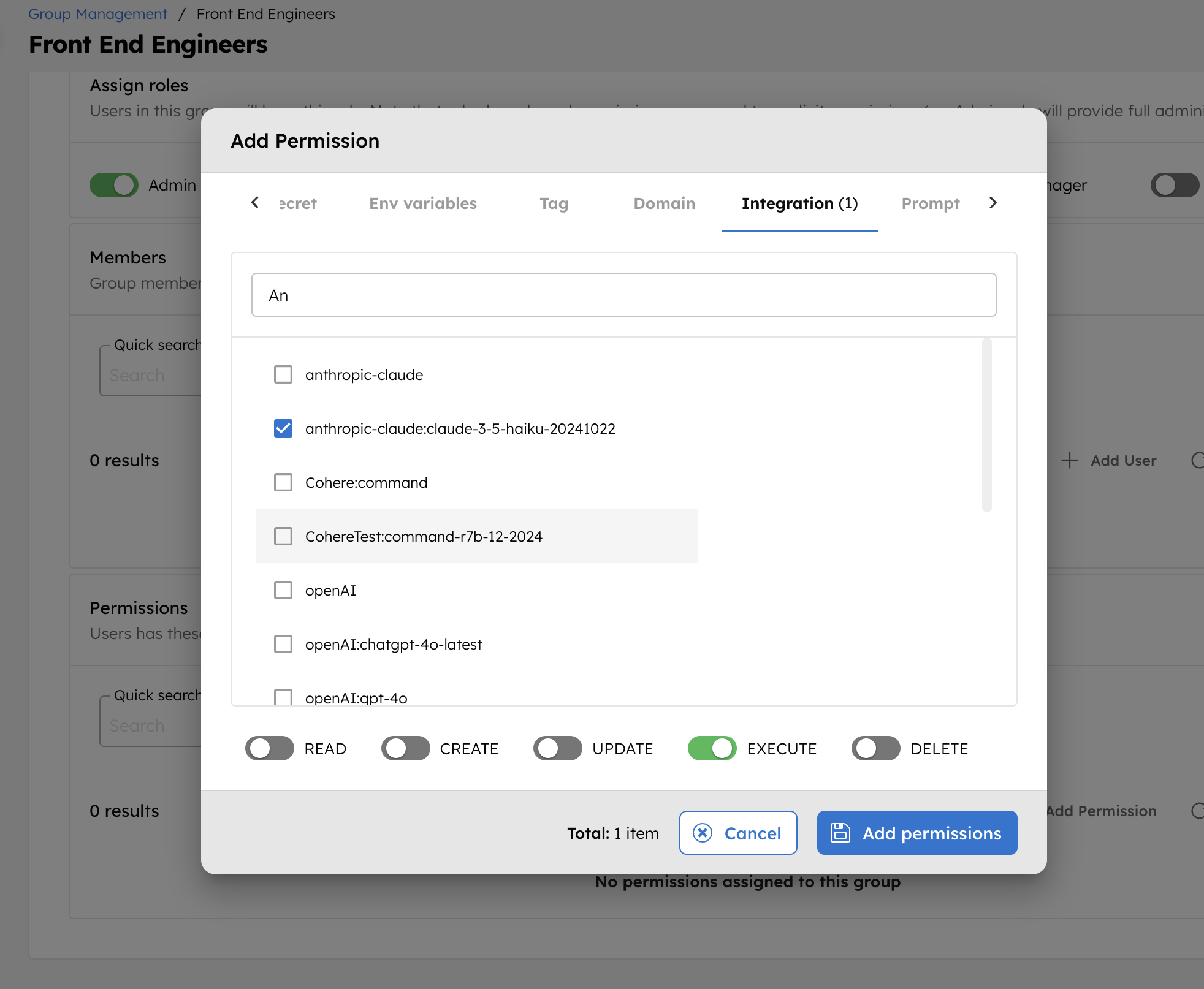

4. In the Integration tab, select the required AI models and toggle the necessary permissions.
5. Select Add Permissions.

The group or application can now access the AI model according to the configured permissions.

With the integration in place, you can now create workflows using AI/LLM tasks.
